Introduction: The Critical Role of Brackets in Modern Automotive Engineering
In the intricate ecosystem of a modern vehicle, every component serves a purpose, but few are as deceptively simple yet structurally vital as the humble automotive bracket. From securing an alternator to the engine block to mounting a sensor array within the chassis, brackets are the unsung heroes of mechanical assembly. However, the demands of contemporary automotive design—weight reduction, increased durability, and complex geometries—have rendered traditional manufacturing methods insufficient. This is where precision CNC machining for automotive brackets has become an indispensable process. This article provides a comprehensive exploration of automotive bracket machining, detailing its methodologies, material considerations, benefits, and best practices for achieving the highest standards of quality and performance.

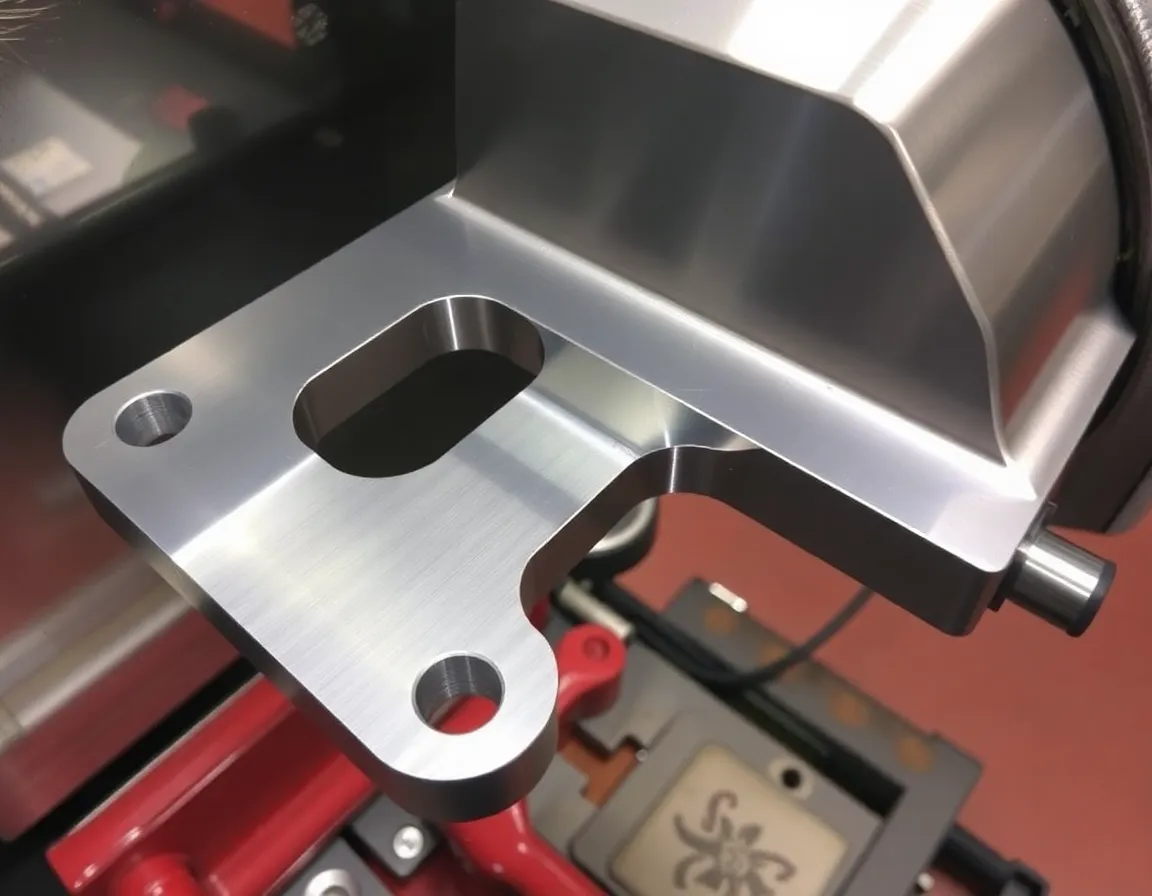

What is Precision CNC Machining for Automotive Brackets?
Precision CNC (Computer Numerical Control) machining is a subtractive manufacturing process where pre-programmed computer software dictates the movement of factory tools and machinery. For automotive brackets, this process involves cutting away material from a solid block (billet) or a near-net shape forging to create a final part with extremely tight tolerances, often measured in microns. Unlike stamping or casting, which rely on molds and dies, CNC machining offers unparalleled flexibility and accuracy.
The Core Process: From CAD to Finished Bracket
The journey of a precision-machined bracket begins with a 3D CAD (Computer-Aided Design) model. This digital blueprint defines every feature, hole, radius, and mounting surface. The model is then converted into a series of toolpaths using CAM (Computer-Aided Manufacturing) software. A CNC milling machine or machining center then executes these toolpaths, typically using a multi-axis setup. For complex automotive brackets, 5-axis CNC machining is often employed, allowing the cutting tool to approach the workpiece from virtually any angle, minimizing setups and maximizing geometric complexity.
Materials Commonly Used in Automotive Bracket Machining
The choice of material is critical to the bracket’s performance. Common materials include:
- Aluminum Alloys (e.g., 6061-T6, 7075-T6): Favored for their excellent strength-to-weight ratio, corrosion resistance, and machinability. Ideal for lightweight brackets in suspension, engine, and interior applications.
- Stainless Steel (e.g., 304, 316): Used for brackets requiring high corrosion resistance and strength, often found in exhaust systems, underbody components, and high-temperature zones.
- Carbon Steel (e.g., 1018, 4140): A cost-effective choice for high-strength applications where weight is less of a concern. Often used for heavy-duty mounting brackets in trucks and industrial vehicles.
- Titanium Alloys (e.g., Ti-6Al-4V): Reserved for high-performance and motorsport applications where extreme strength and low weight are paramount, despite higher material and machining costs.
- Engineering Plastics (e.g., Delrin, Nylon): Used for non-structural or electrical brackets, offering electrical insulation, low friction, and vibration dampening.
Key Benefits of CNC Machining for Automotive Brackets
Choosing CNC machining over alternative methods like casting or stamping offers several distinct advantages for automotive bracket production.
Uncompromising Precision and Repeatability
In automotive engineering, a bracket that is off by even 0.1mm can cause misalignment, vibration, or premature wear of attached components. CNC machining delivers tolerances as tight as ±0.005mm (5 microns). Furthermore, once a program is validated, every single bracket produced is an identical clone of the first. This repeatability is crucial for mass production and quality assurance in the automotive supply chain.
Superior Mechanical Properties and Structural Integrity
Unlike cast brackets, which can contain internal porosity, voids, or residual stresses from the solidification process, CNC-machined brackets are cut from wrought material. This means the metal’s grain structure remains intact and is oriented along the natural flow of the billet, resulting in superior fatigue resistance and overall strength. For safety-critical brackets—such as those for brake calipers or steering components—this structural integrity is non-negotiable.
Design Flexibility and Complex Geometries
Modern automotive designs demand brackets with intricate features: complex curves, internal coolant passages, multiple mounting planes, and weight-reducing pockets. CNC machining can realize these designs without the need for expensive tooling modifications. Design changes can be implemented quickly by simply editing the CAM program, making CNC ideal for prototyping, low-volume production, and custom or aftermarket parts.
Reduced Lead Times and Lower Tooling Costs
Creating a die for stamping or a mold for casting can take weeks or months and cost tens of thousands of dollars. For a CNC machining project, the primary tooling is the workholding fixture and the cutting tools themselves, which are often standard. This drastically reduces upfront costs and lead times, allowing manufacturers to go from design to production in a matter of days.
Applications of Precision CNC Brackets in Vehicles
CNC-machined brackets are found throughout the modern vehicle, each application demanding specific properties.
Engine and Powertrain Brackets
These brackets must withstand high temperatures, constant vibration, and significant static loads. Common examples include alternator brackets, power steering pump brackets, engine mount brackets, and transmission support brackets. Precision machining ensures perfect alignment of pulleys and belts, preventing noise and premature failure.
Chassis and Suspension Brackets
Safety-critical components like shock absorber mounts, control arm brackets, subframe brackets, and sway bar brackets are frequently CNC-machined. The high strength and fatigue life of machined aluminum or steel are essential for handling the dynamic forces of driving, cornering, and braking.
Interior and Electronic Mounting Brackets
As vehicles become more technologically advanced, the number of brackets for electronic control units (ECUs), sensors, infotainment screens, and dashboard components has exploded. CNC machining allows for the creation of thin, lightweight brackets that fit into tight spaces, often with complex cutouts for cable management and heat dissipation.
Custom and Aftermarket Performance Brackets
The aftermarket industry thrives on CNC machining. Custom turbocharger mounting kits, intercooler brackets, and engine swap adapter plates are almost exclusively CNC-machined. This allows for exact fitment for non-standard configurations and the use of exotic materials like billet aluminum or titanium.
Best Practices for Successful Automotive Bracket Machining
To achieve optimal results in automotive bracket machining, manufacturers must adhere to several best practices.
Strategic Workholding and Fixture Design
A bracket is only as accurate as its fixturing. For thin-walled or complex brackets, vibration and deflection are major challenges. Best practices include using vise jaws custom-machined to the part’s contour, vacuum chucks for flat parts, or multi-jaw chucks for cylindrical features. The fixture must provide rigid support without obstructing critical toolpaths.
Toolpath Optimization for Surface Finish
Automotive brackets often have visible surfaces, especially in engine bays or luxury vehicles. To achieve a high-quality surface finish without secondary operations, machinists should use high-speed machining (HSM) strategies like trochoidal milling and constant radial engagement. This reduces tool load, minimizes chatter, and produces a smoother finish. Using a finishing pass with a small step-over and a sharp, high-helix end mill is standard practice.
Precision Measurement and Quality Control
Given the tight tolerances, in-process inspection is critical. Best practices include using coordinate measuring machines (CMMs) for first-article inspection and statistical process control (SPC) for ongoing production. For critical features like bolt hole locations and dowel pin bores, using a CMM ensures they fall within the specified geometric dimensioning and tolerancing (GD&T) standards.
Chip Management and Coolant Strategy
Automotive bracket machining often generates a high volume of chips, particularly when milling aluminum. Proper chip evacuation is essential to prevent re-cutting, which can damage the surface finish and tool. Using through-spindle coolant (TSC) or high-pressure coolant nozzles directed at the cutting zone helps flush chips away and maintains thermal stability, preventing part distortion.
Conclusion: The Future of Brackets is Precision
As automotive engineering continues its relentless pursuit of efficiency, performance, and safety, the humble bracket will remain a critical component. Precision CNC machining for automotive brackets offers an unmatched combination of accuracy, strength, and design freedom that traditional methods cannot replicate. Whether for a mass-produced family sedan or a one-off racing prototype, the ability to produce brackets that fit perfectly, last longer, and weigh less is a competitive advantage. By understanding the materials, processes, and best practices outlined in this article, engineers and manufacturers can ensure that every bracket they produce is not just a piece of metal, but a precision-engineered solution that contributes to the overall excellence of the vehicle.
