Understanding Precision OD/ID Grinding: The Foundation of Component Excellence
In the world of precision manufacturing, the ability to produce components with exacting tolerances is not merely an advantage—it is a necessity. Among the most critical processes for achieving this level of accuracy is OD/ID grinding, a specialized machining technique that simultaneously addresses both the outer diameter (OD) and inner diameter (ID) of a workpiece. This dual-axis approach is fundamental for industries where cylindrical parts must fit together perfectly, rotate at high speeds, or withstand extreme loads. Whether you are producing shafts for aerospace turbines, bearing races for automotive drivetrains, or hydraulic pistons for heavy machinery, understanding the nuances of OD/ID grinding services can dramatically improve part quality, longevity, and overall performance.
At its core, precision OD/ID grinding is a subtractive manufacturing process that uses abrasive wheels to remove material from both the external and internal surfaces of a cylindrical workpiece. Unlike conventional turning or milling, grinding achieves surface finishes measured in microinches and tolerances as tight as ±0.0001 inches (2.5 microns). The process is typically performed on a specialized grinding machine that holds the workpiece between centers or in a chuck, while a rotating grinding wheel traverses along the part’s axis. For inner diameters, a separate spindle-mounted wheel enters the bore, ensuring concentricity between the OD and ID surfaces. This simultaneous or sequential capability is what sets OD/ID grinding services apart from single-surface grinding methods.
How OD/ID Grinding Works: Mechanisms and Machine Configurations
The Core Process: Material Removal Through Abrasion
The fundamental principle of OD/ID grinding relies on high-speed abrasion. The grinding wheel, composed of abrasive grains bonded together, rotates at speeds typically ranging from 5,000 to 12,000 surface feet per minute (SFM). As the wheel contacts the workpiece, each abrasive grain acts as a tiny cutting tool, shearing away microscopic chips of material. The workpiece itself rotates in the opposite direction (or the same direction, depending on the grinding technique) at a slower speed, typically 100 to 500 RPM. This relative motion creates a consistent, predictable cutting action that produces exceptionally smooth surfaces.

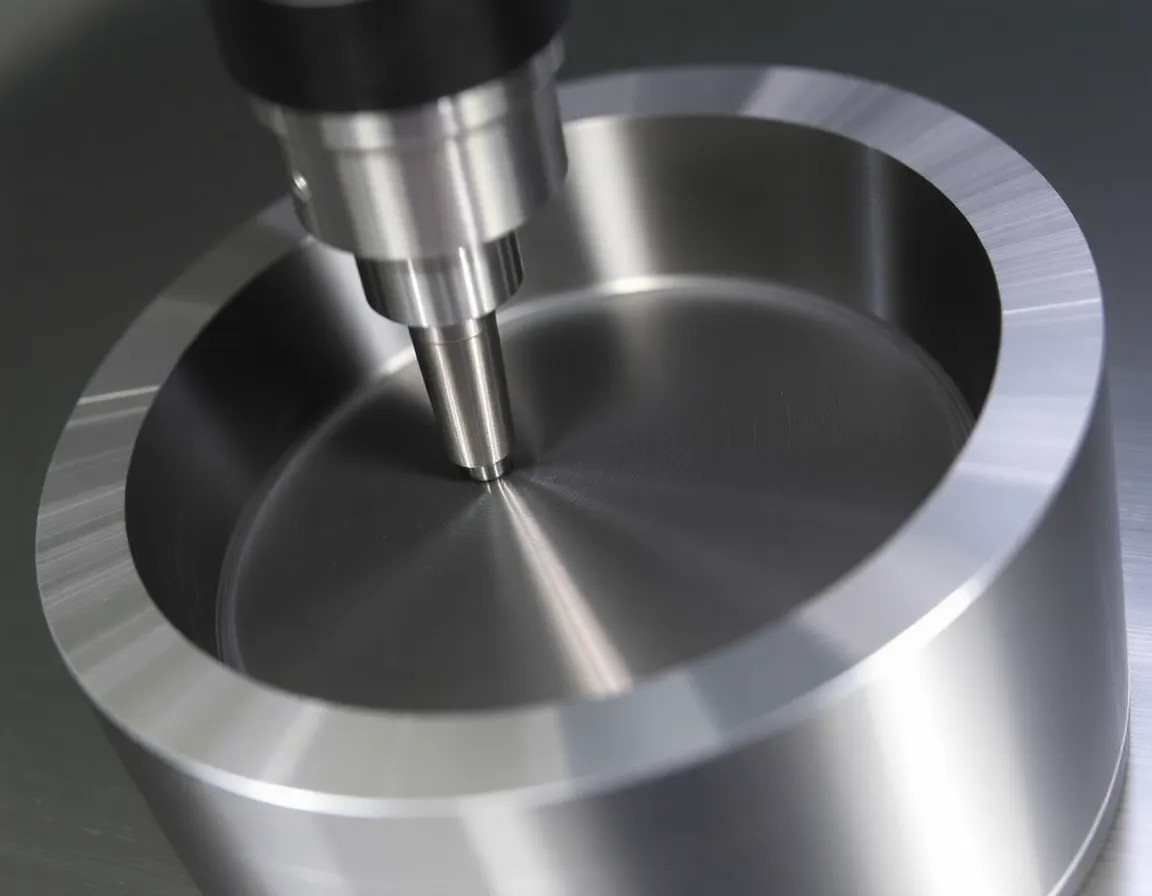

For OD grinding, the workpiece is usually mounted between centers or in a chuck, and the grinding wheel is positioned on the outside of the part. The wheel is fed radially into the workpiece to achieve the desired diameter, while the workpiece and wheel traverse axially to grind the entire length. For ID grinding, a smaller wheel is mounted on a quill or spindle that enters the bore. The wheel rotates at a much higher RPM to compensate for its smaller diameter, maintaining the necessary surface speed. The workpiece is held stationary or rotates slowly, and the wheel oscillates in and out to grind the inner surface.
Simultaneous vs. Sequential Grinding
One of the key decisions in OD/ID grinding services is whether to perform operations simultaneously or sequentially. Simultaneous OD/ID grinding uses two separate grinding spindles—one for the outer diameter and one for the inner diameter—that work on the part at the same time. This approach is highly efficient for high-volume production and ensures perfect concentricity between the two surfaces because the part is not repositioned between operations. However, it requires more complex machine setups and is best suited for parts with relatively simple geometries.
Sequential grinding, on the other hand, completes the OD first and then the ID (or vice versa) in separate setups. While this method is slower, it offers greater flexibility for complex parts with varying diameters, shoulders, or tapers. It also allows for different grinding wheels to be used for each surface, optimizing abrasive selection for the specific material and finish requirements. Many precision grinding shops offer both approaches, depending on the customer’s volume, tolerances, and part geometry.
Coolant and Dressing: The Unsung Heroes
No discussion of OD/ID grinding is complete without addressing the critical roles of coolant and wheel dressing. Coolant is essential for controlling heat generation, which can cause thermal expansion, surface burns, and metallurgical damage. High-pressure coolant systems flood the grinding zone, flushing away chips and maintaining a stable temperature. For difficult materials like tool steels or superalloys, specialized coolant formulations with extreme-pressure additives are used.
Wheel dressing is the process of periodically reshaping and sharpening the grinding wheel to maintain its cutting efficiency. A diamond dressing tool is traversed across the wheel’s surface, removing dulled grains and exposing fresh, sharp cutting edges. Proper dressing is critical for achieving consistent surface finishes and preventing vibration or chatter. Many modern CNC grinders incorporate automated dressing cycles that compensate for wheel wear in real time, ensuring repeatability across long production runs.
Key Benefits of Precision OD/ID Grinding Services
Unmatched Accuracy and Tight Tolerances
The most compelling reason to choose precision OD/ID grinding over alternative methods is its ability to achieve tolerances that other processes cannot match. While conventional turning can hold ±0.001 inches, grinding routinely achieves ±0.0002 inches or better. For applications like bearing races, fuel injector components, or hydraulic valve spools, this level of precision is non-negotiable. The process also ensures exceptional roundness and cylindricity, meaning the part is not only the correct size but also perfectly circular and straight along its axis.
Superior Surface Finish for Reduced Friction
Surface finish is a direct driver of component performance and lifespan. A rough surface creates micro-asperities that increase friction, generate heat, and accelerate wear. Precision OD/ID grinding can achieve surface finishes as low as 2 to 4 microinches Ra (roughness average). This mirror-like finish reduces friction in rotating assemblies, minimizes fluid leakage in hydraulic systems, and extends the fatigue life of components subjected to cyclic loading. For example, a ground shaft running in a bearing will experience significantly less wear than a turned shaft, often doubling or tripling the service interval.
Enhanced Concentricity and Geometric Consistency
Perhaps the greatest advantage of OD/ID grinding is the ability to maintain precise concentricity between the outer and inner diameters. When a part is ground in a single setup or with careful alignment, the OD and ID are perfectly coaxial. This is critical for components like sleeves, bushings, and hollow shafts where any eccentricity would cause vibration, noise, and premature failure. Precision grinding services use advanced measurement systems, including in-process gauging and post-process coordinate measuring machines (CMMs), to verify concentricity and correct any deviations before the part leaves the machine.
Improved Material Properties and Fatigue Life
Grinding is not just about geometry—it also influences the metallurgical state of the workpiece. The compressive stresses induced by the grinding process can actually improve the fatigue resistance of the surface layer. Unlike tensile stresses from machining, which can initiate cracks, grinding-induced compressive stresses close micro-cracks and prevent their propagation. However, this benefit is only realized when the process is carefully controlled to avoid thermal damage. Professional OD/ID grinding services monitor parameters such as wheel speed, feed rate, and coolant flow to ensure a “gentle” grind that enhances rather than degrades the material.
Applications Across Critical Industries
Aerospace and Defense
The aerospace industry demands components that can withstand extreme temperatures, pressures, and rotational speeds. Precision OD/ID grinding is used extensively for turbine shafts, bearing housings, landing gear components, and fuel system parts. For example, a jet engine’s main shaft must maintain concentricity within millionths of an inch to prevent vibration that could lead to catastrophic failure. Similarly, hydraulic actuators in flight control systems rely on ground cylinder bores and piston ODs to achieve leak-free operation at pressures exceeding 3,000 PSI.
Automotive and Motorsports
In the automotive sector, OD/ID grinding is essential for transmission shafts, camshafts, crankshafts, and wheel hubs. High-performance racing engines, in particular, benefit from the reduced friction and improved balance that grinding provides. A ground camshaft, for instance, allows valve lifters to follow the cam profile with minimal friction, increasing horsepower and fuel efficiency. Electric vehicle (EV) components, such as rotor shafts and stator housings, also rely on grinding to achieve the tight air gaps necessary for efficient motor operation.
Medical Devices and Implants
The medical industry requires components that are not only precise but also biocompatible and sterilizable. Surgical instruments, orthopedic implants (such as hip and knee replacements), and dental drill shafts are all produced using precision OD/ID grinding. The process ensures that implant surfaces are smooth enough to minimize bacterial adhesion and wear debris generation, which can cause inflammation or implant failure. For example, a femoral stem for a hip replacement must have a perfectly ground taper to mate with the ceramic ball head, ensuring a secure, long-lasting connection.
Hydraulics, Pneumatics, and Fluid Power
Hydraulic and pneumatic systems depend on components that can maintain a seal under high pressure and dynamic motion. Cylinder tubes, piston rods, valve spools, and pump shafts are all candidates for OD/ID grinding. A ground cylinder bore, for instance, provides the smooth surface required for piston seals to glide without leakage. In a hydraulic valve, the spool must fit within its bore with a clearance of just a few microns to control oil flow precisely. Any deviation from roundness or straightness would result in internal leakage, reduced efficiency, and system overheating.
Best Practices for Maximizing Results with OD/ID Grinding Services
Material Selection and Pre-Grinding Preparation
Not all materials respond equally to grinding. Hardened steels (Rc 45-65), tool steels, stainless steels, and superalloys are ideal because they are already heat-treated and stable. Softer materials, such as aluminum or brass, can be ground but require careful wheel selection and lower feed rates to avoid loading the wheel with smeared metal. Prior to grinding, parts should be stress-relieved and heat-treated to minimize distortion. Pre-machining to within 0.010-0.020 inches of the final size reduces grinding time and wheel wear.
Partnering with a Reputable Service Provider
When selecting an OD/ID grinding service, look for a shop with certified quality management systems (e.g., ISO 9001 or AS9100), modern CNC equipment, and a proven track record in your industry. Ask about their in-process gauging capabilities—many leading shops use laser micrometers or air gauging to measure parts during grinding, allowing for real-time adjustments. Also, inquire about their ability to handle complex geometries, such as tapers, radii, or multi-diameter shafts. A good provider will work with you to optimize the grinding cycle for both quality and cost.
Post-Grinding Handling and Inspection
After grinding, parts must be handled with care to preserve their precision. Deburring of sharp edges is essential, as micro-burrs can act as stress risers. Cleaning is equally important to remove grinding swarf and coolant residues that could interfere with subsequent assembly or coating processes. Final inspection should include dimensional checks using a CMM, surface finish measurement with a profilometer, and, for critical parts, non-destructive testing such as magnetic particle or dye penetrant inspection to detect surface cracks.
Continuous Improvement and Process Monitoring
Precision grinding is as much an art as it is a science. The best shops employ statistical process control (SPC) to monitor key parameters like wheel wear, surface finish, and dimensional drift. By analyzing trends, they can predict when a wheel needs dressing or a machine requires maintenance, preventing costly rejects. Additionally, they invest in operator training, ensuring that technicians understand the metallurgical and mechanical principles behind the process. This commitment to continuous improvement translates directly into higher quality parts and longer service life for your components.
Conclusion: The Strategic Value of Precision OD/ID Grinding
In an era where product performance and reliability are paramount, precision OD/ID grinding stands as a cornerstone of advanced manufacturing. By delivering unmatched accuracy, superior surface finishes, and enhanced concentricity, this process directly contributes to longer component life, reduced maintenance costs, and improved system efficiency. Whether you are designing a next-generation medical implant, a high-speed aerospace actuator, or a heavy-duty hydraulic system, investing in professional OD/ID grinding services is a strategic decision that pays dividends throughout the product lifecycle. When parts fit perfectly, rotate smoothly, and resist wear, the entire assembly performs better—and that is the ultimate measure of manufacturing excellence.
