Introduction to Internal Grinding: The Pursuit of Precision
In the world of precision manufacturing, few processes demand as much control and expertise as internal grinding. This specialized machining operation is the go-to solution for achieving exceptional surface finishes and tight dimensional tolerances on the inside diameters of cylindrical workpieces. From the hydraulic cylinders that power heavy machinery to the bearing races that enable high-speed rotation, internal grinding is the critical final step that transforms a rough bore into a high-performance engineering component. This article will provide a comprehensive masterclass on internal grinding, covering its fundamental principles, operational mechanics, key benefits, diverse applications, and the best practices that separate a mediocre finish from a world-class one.
What is Internal Grinding? Understanding the Core Process

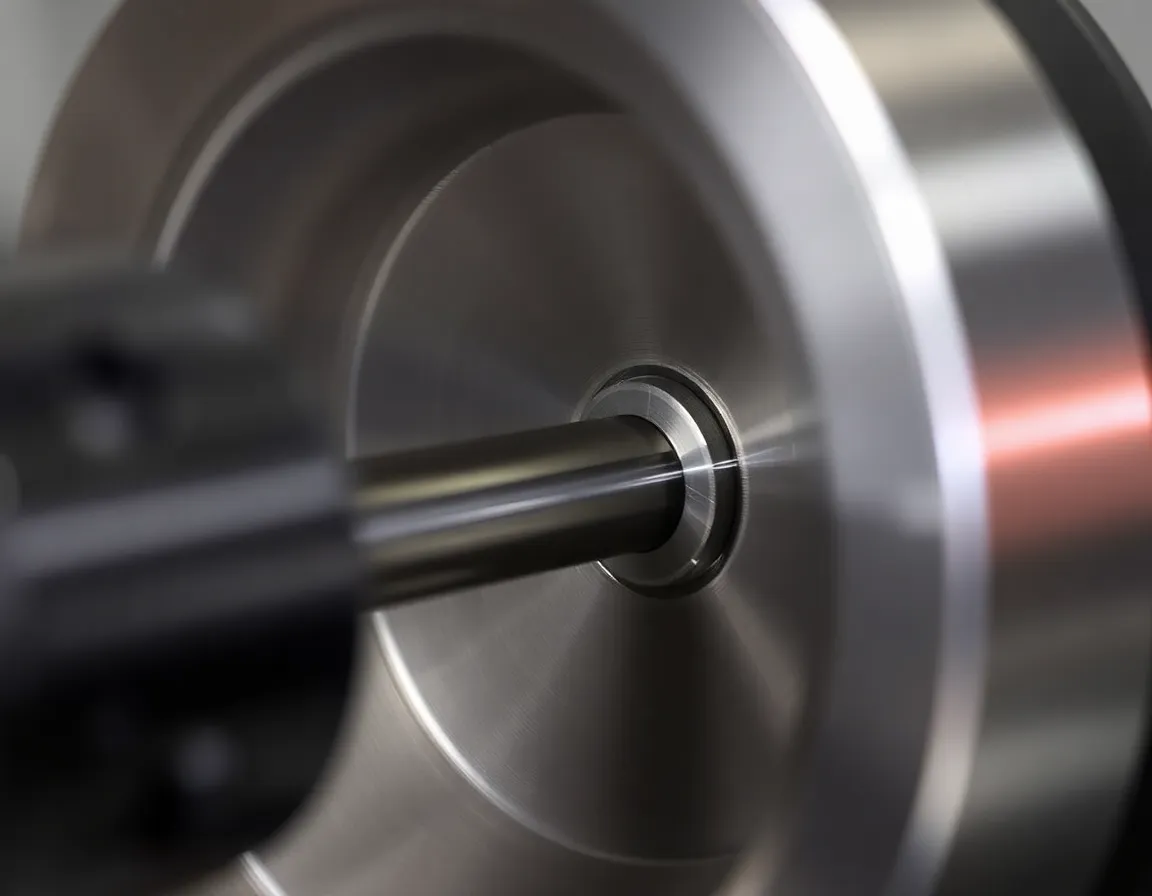

Internal grinding, also known as inner diameter (ID) grinding, is a machining process used to finish the internal surface of a hole or bore. Unlike external cylindrical grinding, where the workpiece rotates against a larger grinding wheel, internal grinding presents unique challenges due to the confined space and the small diameter of the grinding wheel. The process typically involves a rotating workpiece held in a chuck or between centers, while a small, high-speed grinding wheel is fed into the bore to remove material.
The Fundamental Mechanics
The core principle relies on abrasive cutting. The grinding wheel, composed of hard abrasive grains (such as aluminum oxide, silicon carbide, or cubic boron nitride) bonded together, acts as a multi-point cutting tool. As the wheel rotates at high speeds—often between 10,000 and 60,000 RPM depending on wheel diameter—it contacts the internal surface of the rotating workpiece. The combination of these two rotational motions, along with a reciprocating or oscillating feed motion, creates a precise, smooth, and concentric bore.
Key Components of an Internal Grinding System
- The Grinding Wheel: Typically smaller in diameter than the bore being ground, these wheels are mounted on a spindle that extends into the workpiece. Wheel selection (grit size, bond type, and abrasive material) is critical for surface finish.
- The Workpiece Holding Device: Chucks (magnetic or mechanical), collets, or specialized fixtures that ensure the workpiece is held securely and concentrically.
- The Spindle: A high-precision, high-speed assembly that rotates the grinding wheel. It must be extremely rigid to minimize deflection and vibration.
- The Coolant System: A high-pressure, filtered coolant delivery system is essential to flush away swarf, control heat, and prevent thermal damage to the workpiece.
- The CNC Control: Modern machines use computer numerical control (CNC) to manage wheel feed rates, oscillation, spark-out passes, and dressing cycles with micron-level accuracy.
How Internal Grinding Works: A Step-by-Step Process
Executing a successful internal grinding operation is a delicate balance of speed, feed, and precision. The process can be broken down into several distinct phases, each requiring careful monitoring and adjustment.
Step 1: Workpiece Setup and Alignment
The workpiece must first be accurately positioned. For cylindrical parts, the external diameter is often used as a reference surface. The part is mounted in a chuck or between centers, and a dial indicator is used to ensure the bore is running true, typically within 0.005 mm (0.0002 inches). Any misalignment at this stage will be magnified in the final geometry.
Step 2: Wheel Selection and Dressing
The grinding wheel is chosen based on the material being ground (e.g., hardened steel, ceramic, or carbide) and the desired surface finish. A coarse grit (e.g., 46 or 60) is used for rapid stock removal, while a fine grit (e.g., 120 or 220) is used for finishing. Before grinding begins, the wheel must be dressed using a diamond tool. Dressing removes dull grains and exposes sharp, new cutting edges, while also truing the wheel to ensure it is perfectly round and concentric with the spindle axis.
Step 3: The Grinding Cycle
The CNC program initiates the cycle. The wheel is rapidly advanced into the bore until it contacts the workpiece. The process then typically follows this pattern:
- Rough Grinding: A higher material removal rate is used to quickly bring the bore close to the final size. This stage uses a coarser wheel and a faster feed rate (e.g., 0.05 mm per pass).
- Finish Grinding: The feed rate is reduced significantly (e.g., 0.005 mm per pass) to refine the surface finish and achieve the final dimensional tolerance.
- Spark-Out: After the final feed pass, the wheel is held in position for several revolutions without any additional infeed. This allows the elastic deflection in the system to relax, removing microscopic amounts of material and creating a mirror-like finish.
Step 4: In-Process Gaging and Compensation
High-precision internal grinding machines often incorporate in-process gaging. A finger-type or plug-type gage measures the bore diameter during grinding. This data is fed back to the CNC controller, which automatically compensates for wheel wear and thermal expansion, ensuring the final size is achieved without operator intervention.
Key Benefits: Why Choose Internal Grinding?
Internal grinding is not the fastest or cheapest way to create a hole—drilling or boring are far more efficient for initial material removal. However, for applications demanding the highest levels of quality, internal grinding offers irreplaceable advantages.
Unmatched Dimensional Accuracy and Roundness
Internal grinding routinely achieves tolerances of ±0.0025 mm (±0.0001 inches) or better. The process also corrects geometric errors from previous operations, producing bores that are perfectly round, straight, and coaxial with external reference surfaces. This level of precision is essential for components like fuel injectors and hydraulic spools.
Superior Surface Finish
The abrasive action of the grinding wheel produces a surface finish that is difficult to match with other methods. Typical Ra (average roughness) values range from 0.4 µm down to 0.1 µm or lower. A finely ground surface reduces friction, improves sealing, and extends the fatigue life of the part.
Versatility with Hard Materials
One of the greatest strengths of internal grinding is its ability to machine materials that are too hard for conventional cutting tools. Hardened steels (above 60 HRC), ceramics, carbides, and glass are all routinely ground. This makes it the ideal finishing process for parts that have been heat-treated after initial machining.
Correction of Pre-Existing Errors
If a bore has been bored or reamed with a slight taper, ovality, or misalignment, internal grinding is the only reliable method to correct these errors. The grinding wheel can be programmed to follow a specific path, removing material only where needed to create a geometrically perfect bore.
Applications Across Industries
The demand for precision internal grinding spans virtually every sector of advanced manufacturing. Its ability to produce high-quality bores makes it indispensable for critical components.
Automotive and Heavy Machinery
Internal grinding is used extensively for finishing engine cylinder bores, connecting rods, transmission gears, and hydraulic pump bodies. In heavy machinery, it is essential for the large bores in excavator arms, crane turntables, and mining equipment bearings.
Aerospace and Defense
Aerospace components demand zero tolerance for failure. Internal grinding is used for landing gear struts, turbine engine shafts, fuel metering valves, and actuator housings. The process ensures that these parts can withstand extreme stresses and temperatures.
Medical Devices and Precision Instruments
In the medical field, internal grinding creates the smooth, sterile surfaces required for surgical instruments, dental handpieces, and orthopedic implants. The process is also critical for the precision bores in syringes, catheters, and diagnostic equipment.
Tool and Die Making
Mold cavities, dies, and punches often require internal grinding to achieve the necessary finish and geometry. This is particularly true for injection molds and cold-forming dies, where surface quality directly impacts the final product.
Best Practices for Mastering Internal Grinding
Achieving consistent, high-quality results in internal grinding requires more than just good equipment. It demands a disciplined approach to process parameters, maintenance, and troubleshooting.
Optimize Coolant Delivery
Internal grinding generates intense heat in a confined space. The coolant nozzle must be positioned to deliver a high-velocity stream directly into the grinding zone. Use a filtered coolant with a mesh size of 20 microns or finer to prevent recirculating swarf from scratching the finished surface. Consider using a high-pressure coolant system (500-1000 PSI) for better chip evacuation and wheel cleaning.
Control Wheel and Workpiece Speeds
The ratio between the wheel speed (surface feet per minute, SFM) and the workpiece speed is critical. A typical rule of thumb is to maintain a wheel speed of 5,000-6,500 SFM for conventional abrasives. The workpiece speed should be slow enough to allow the wheel to cut effectively, but fast enough to prevent burnishing. A common starting point is 50-100 SFM for the workpiece.
Master the Art of Dressing
Dressing frequency and depth are often underestimated. For finishing operations, use a light dressing pass (0.005 mm or less) with a sharp, single-point diamond. For roughing, a more aggressive dress can be used. A dull or improperly dressed wheel will cause burning, chatter marks, and poor surface finish. Always dress the wheel after the machine has reached thermal stability.
Minimize Overhang and Vibration
The greatest enemy of internal grinding is vibration. The grinding wheel spindle should have the shortest possible overhang into the bore. Use a stub-length spindle whenever possible. If the bore is deep, consider using a longer, stiffer wheel adapter. Check for vibration sources such as unbalanced wheels, worn bearings, or loose machine anchors. A vibration analyzer can help identify and eliminate these issues.
Implement a Rigorous Inspection Protocol
Do not rely solely on in-process gaging. After grinding, inspect the bore for:
- Roundness and Taper: Using a bore gage or air gage.
- Surface Finish: Using a profilometer to measure Ra, Rz, or Rq values.
- Visual Defects: Look for grinding burns (discoloration), chatter marks, or spiral lines.
- Dimensional Accuracy: Verify against the print specification at multiple depths.
Conclusion: The Art and Science of Precision
Mastering internal grinding is a blend of scientific understanding and practical craftsmanship. It requires an intimate knowledge of abrasive technology, machine dynamics, and thermal behavior. While the process is often seen as a "black art" by those new to it, the principles are grounded in physics and repeatable engineering. By carefully controlling every variable—from wheel selection and dressing to coolant flow and feed rates—manufacturers can consistently produce bores that meet the most demanding specifications. As industries continue to push the boundaries of performance and miniaturization, the role of internal grinding as a cornerstone of precision manufacturing will only grow in importance. Whether you are producing a single prototype or running a high-volume production line, the mastery of this process is a competitive advantage that cannot be overlooked.
