One Hole, Several Decisions: CNC Hole Machining

A hole is rarely just a diameter. CNC hole machining may need to control location, depth, straightness, finish, fit, threads, countersinks, chip evacuation, and the relationship between several holes. Drilling creates an opening, but boring, reaming, interpolation, and finishing operations may be needed to make that opening function in an assembly. This guide organizes the decision and connects it to the broader CNC machining process overview.

Start with what the hole must do

machined-hole-functions

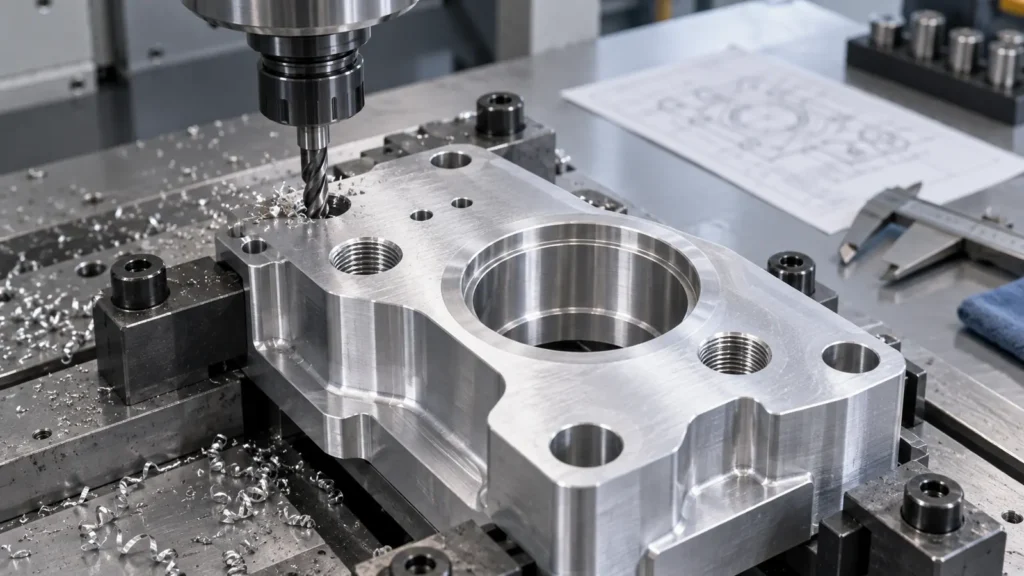

The correct route depends on function. A bolt clearance hole does not need the same process as a reamed locating hole, bearing bore, coolant passage, or tapped blind hole.

  • Fastener clearance: control diameter, position, edge distance, and burrs.
  • Locating fit: control size, position, perpendicularity, cylindricity, and datum relationship.
  • Bearing or seal seat: control bore size, roundness, coaxiality, and surface finish.
  • Fluid passage: plan chip evacuation, intersections, deburring, cleanliness, and testing.

Once the function is clear, the supplier can decide whether drilling is sufficient or whether boring, reaming, interpolation, or a second inspection step is needed.

Drilling, boring, reaming, and interpolation

hole-machining-methods

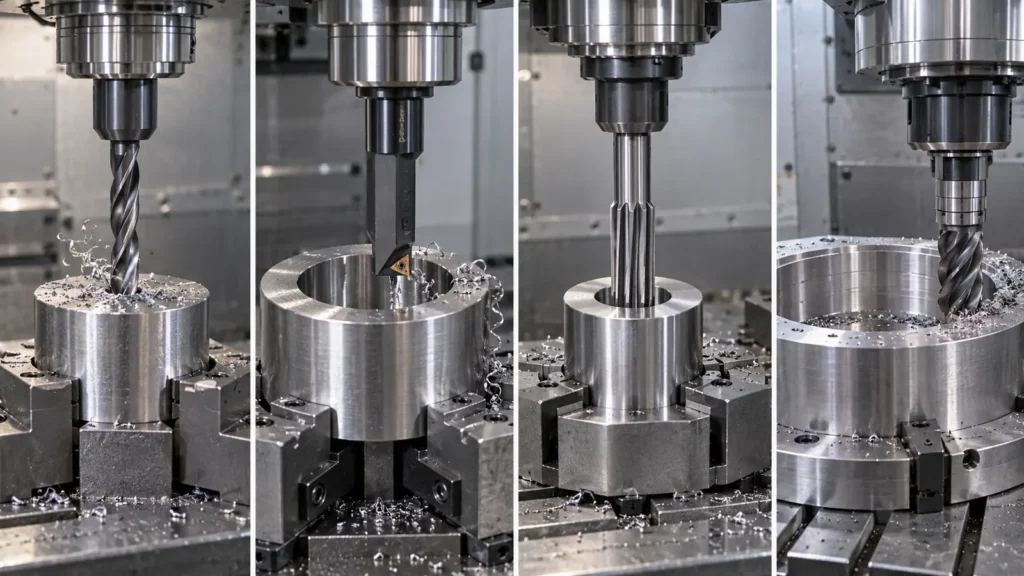

Method Best use Main planning question
Drilling Creates the initial opening Are size, position, straightness, and finish adequate?
Boring Corrects or enlarges an existing hole Can the setup keep the bore aligned to datum?
Reaming Finishes a prepared hole Is the pre-hole straight and correctly sized?
Circular interpolation Generates a hole with a milling cutter Will access, rigidity, material, and path control meet the requirement?

These methods can be combined. A typical route may spot, drill near depth, then ream or bore when the assembly requires a controlled final condition.

Build the machining sequence

  1. Establish the datum that controls position and orientation.
  2. Prepare the entry with spotting or a chamfer.
  3. Select drill length, coolant, peck strategy, and depth allowance.
  4. Refine with boring, reaming, interpolation, countersinking, or counterboring.
  5. Remove burrs and chips from sealing faces, threads, and intersections.
  6. Inspect diameter, depth, position, orientation, and datum relationship.

Sequence matters near thin walls and intersecting passages. Preserve stiffness and access until the critical hole is complete.

Blind holes and stepped features

blind-through-holes

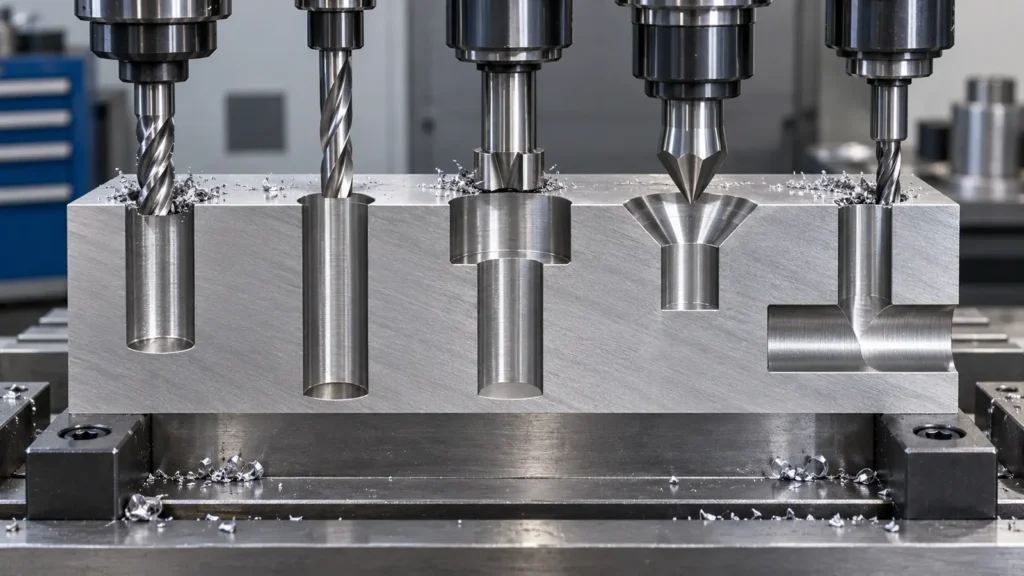

Through holes provide an exit for chips and coolant; blind holes need a controlled bottom condition and a strategy for chip removal. Usable depth may be less than drill depth because of the drill point, chamfer, thread runout, or bottom clearance.

Feature Risk Define on drawing
Through hole Exit burr and breakthrough damage Exit edge, deburring, position, diameter
Blind hole Chip packing and uncertain usable depth Total depth, usable depth, bottom form, cleanliness
Counterbore or countersink Seat depth and coaxiality Standard, diameter, angle or depth

Control chips, heat, and deflection

deep-hole-chip-control

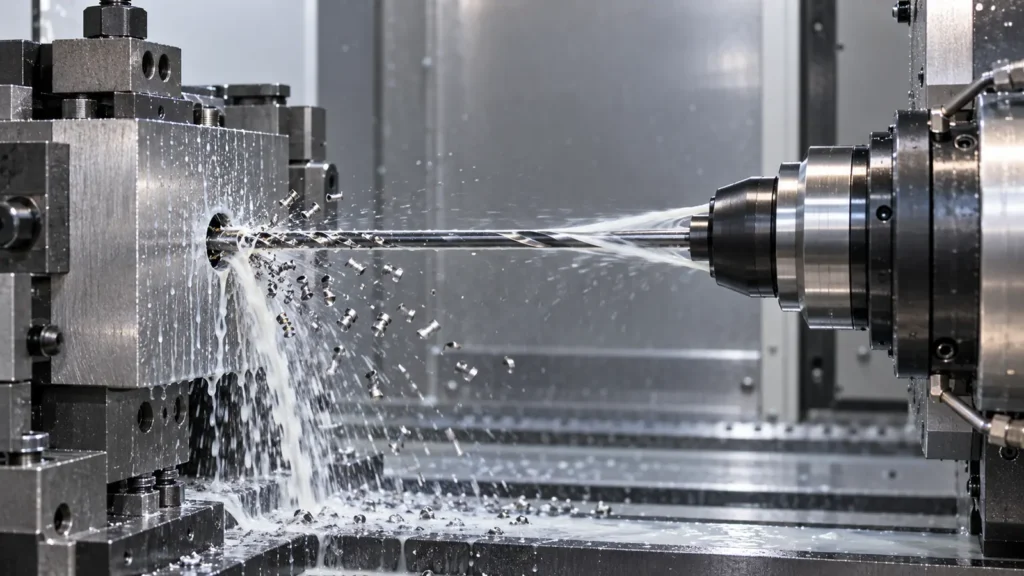

As diameter decreases, depth increases, or material becomes more ductile or abrasive, the tool has less room to carry chips out. Recutting chips can create heat, wear, poor finish, or tool breakage.

  • Use pecking or chip breaking when depth and material require it.
  • Deliver coolant or air where it can evacuate chips.
  • Keep tool reach and runout under control.
  • Use rigid workholding and preserve support around the hole.
  • Plan cleaning for blind, intersecting, or fluid-channel features.

There is no universal maximum drilling depth: the practical limit depends on diameter, ratio, tool, material, machine, coolant, tolerance, and hole condition.

Tolerance and inspection

hole-tolerance-inspection

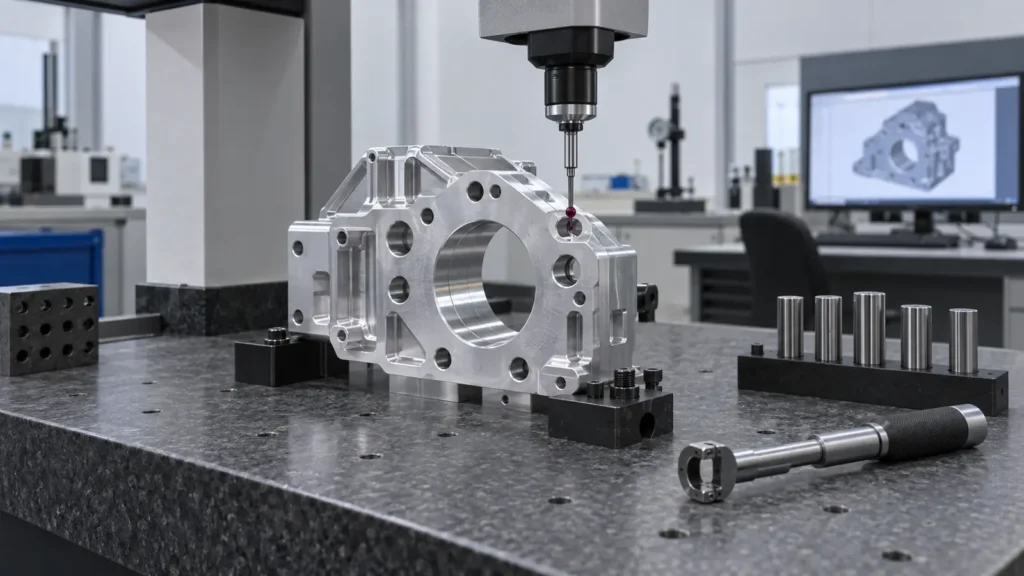

A hole can have the correct diameter and still fail because it is misplaced, tilted, tapered, rough, or too shallow. Inspection should follow the feature control frame and mating function.

Characteristic Why it matters Possible inspection
Diameter and fit Clearance, interference, sealing, or locating Pin gauge, bore gauge, micrometer, or CMM
Position Assembly alignment and bolt-pattern function Datum-based CMM or coordinate inspection
Depth and bottom Thread engagement or fastener clearance Depth gauge, probe, or CMM

Measure the hole from the part datum and its mating feature, not only from an arbitrary edge. The CNC quality information can support discussion of reports and measurement requirements.

Design choices for better holes

  • Use standard drill, reamer, and thread sizes where function allows.
  • Provide a stable entry face and enough edge distance.
  • Define blind-hole usable depth separately from total depth.
  • Avoid tight holes next to unsupported thin walls unless required.
  • State whether a hole is clearance, locating, bearing, sealing, fluid, or threaded.
  • Specify deburring and cleanliness for internal features.

These choices make the requirement easier to manufacture, inspect, and communicate without weakening the design intent.

RFQ information

  1. Current 3D model and 2D drawing with callouts, datums, and revision.
  2. Hole type, diameter, depth, fit, position, orientation, thread, and surface requirements.
  3. Material grade, condition, thickness, quantity, and prototype or production status.
  4. Deburring, cleaning, pressure, leak, coating, and assembly requirements.
  5. Inspection report, first article, sampling, traceability, and packaging expectations.

CNC hole machining FAQs

What is the difference between drilling, boring, and reaming?

Drilling creates the initial hole, boring enlarges or corrects it, and reaming removes a controlled final allowance to improve size and surface condition.

When does a drilled hole need reaming?

Consider reaming when the final size and finish must be more controlled than the drilling route can reliably provide.

How are deep holes kept accurate?

Accuracy depends on depth ratio, tool rigidity, guidance, coolant, chip evacuation, machine condition, material, and inspection.

Why can a hole be the right size but still fail?

It may be misplaced, tilted, tapered, rough, too shallow, or not aligned with the datum or mating feature.

What should be specified for a blind hole?

Specify diameter, usable and total depth, bottom condition, thread or fit, position, chamfer, burr limits, cleanliness, and mating clearance.

Effective CNC hole machining starts with the part’s function and ends with evidence that the hole will assemble, seal, locate, carry a fastener, or carry a fluid as intended. Separating drilling, refining, deburring, cleaning, and inspection decisions prevents a simple diameter callout from hiding a difficult manufacturing requirement.
