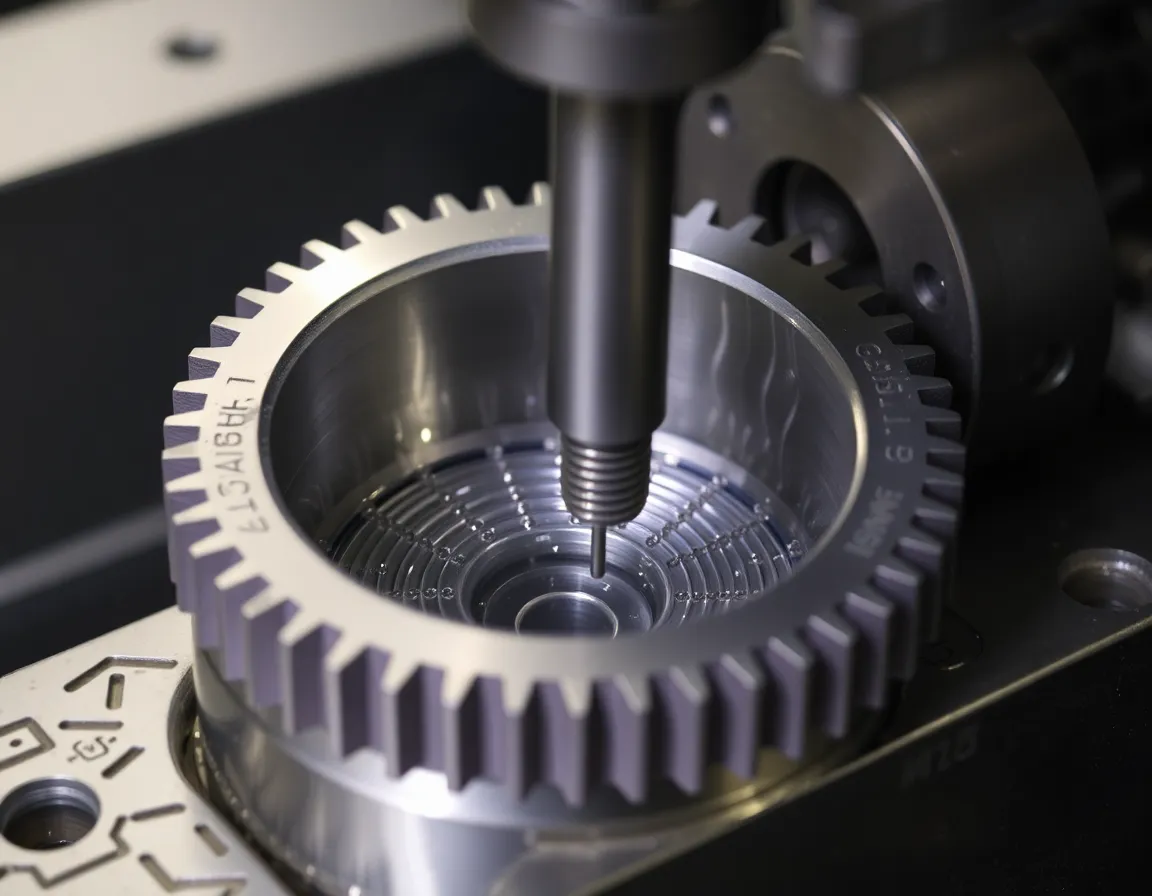

Precision Threaded Parts Machining for Your Critical Assemblies

Threaded parts machining is a precision manufacturing process that creates helical ridges, known as threads, on cylindrical or conical surfaces of a workpiece. This is primarily done using techniques like CNC turning, tapping, or thread milling. It's used to produce components that can be assembled via screwing, such as bolts, screws, threaded rods, fittings, and complex assemblies with integrated threaded features. The process can handle a wide range of materials including metals (like steel, aluminum, and brass), plastics, and exotic alloys. The result is a part designed for fastening, adjustment, or power transmission, meeting exact specifications for thread type (e.g., metric, UNC), pitch, and depth.

The process for machining threaded parts typically involves computer-controlled (CNC) machines for high precision and repeatability. For external threads, like on a bolt, a CNC lathe uses a single-point cutting tool to carve the helical groove as the workpiece rotates. For internal threads, like in a nut, a process called tapping uses a tool with cutting edges to form the thread inside a pre-drilled hole. Alternatively, thread milling uses a rotating cutter that moves in a helical path. The CNC program is fed with exact specifications—thread form, major/minor diameter, pitch, and tolerance class. This automated process ensures each thread is consistent, accurate, and meets stringent industry standards like ASME or ISO.

Professional threaded parts machining offers several key benefits. First is precision and reliability; CNC machining ensures threads are cut to exact tolerances, guaranteeing proper fit, strength, and sealing in assembly. Second is material versatility, allowing threads to be machined into virtually any machinable material for specific strength, corrosion resistance, or thermal properties. Third is scalability, from prototyping single pieces to high-volume production with consistent quality. It also provides design flexibility for custom thread forms and complex part geometries that standard fasteners cannot achieve. Finally, it enhances part integrity, as machined threads are often stronger and more durable than rolled or cast threads, especially in critical applications.

Common concerns in threaded parts machining include thread galling (material adhesion), burr formation, and maintaining tight tolerances. Galling, common in stainless steel or aluminum, is addressed by using appropriate cutting fluids, controlled speeds/feeds, and sometimes special tool coatings. Burrs are minimized with sharp tools, proper machining parameters, and secondary deburring operations. Tolerance challenges are managed through precise machine calibration, quality tooling, and in-process inspection using thread gauges (plug and ring gauges) or optical measurement systems. Other concerns like chip evacuation in blind holes are solved with specialized tap designs and pecking cycles. A reputable machinist will anticipate these issues and implement proven strategies to ensure flawless threads.

The pricing and lead time for custom threaded parts machining depend on several factors. Key cost drivers include part complexity (thread size, depth, and special forms), material type and cost, required tolerances and surface finishes, and order quantity. Setup and programming time impact low-volume costs, while material removal time dominates for larger runs. Secondary operations like heat treatment or plating add cost and time. Lead time is influenced by project complexity, current shop workload, and material availability. Typically, simpler threaded parts in standard materials can be produced quickly, while complex, high-precision components in exotic alloys require more time. Providing detailed drawings and specifications upfront allows for the most accurate and efficient quote.
