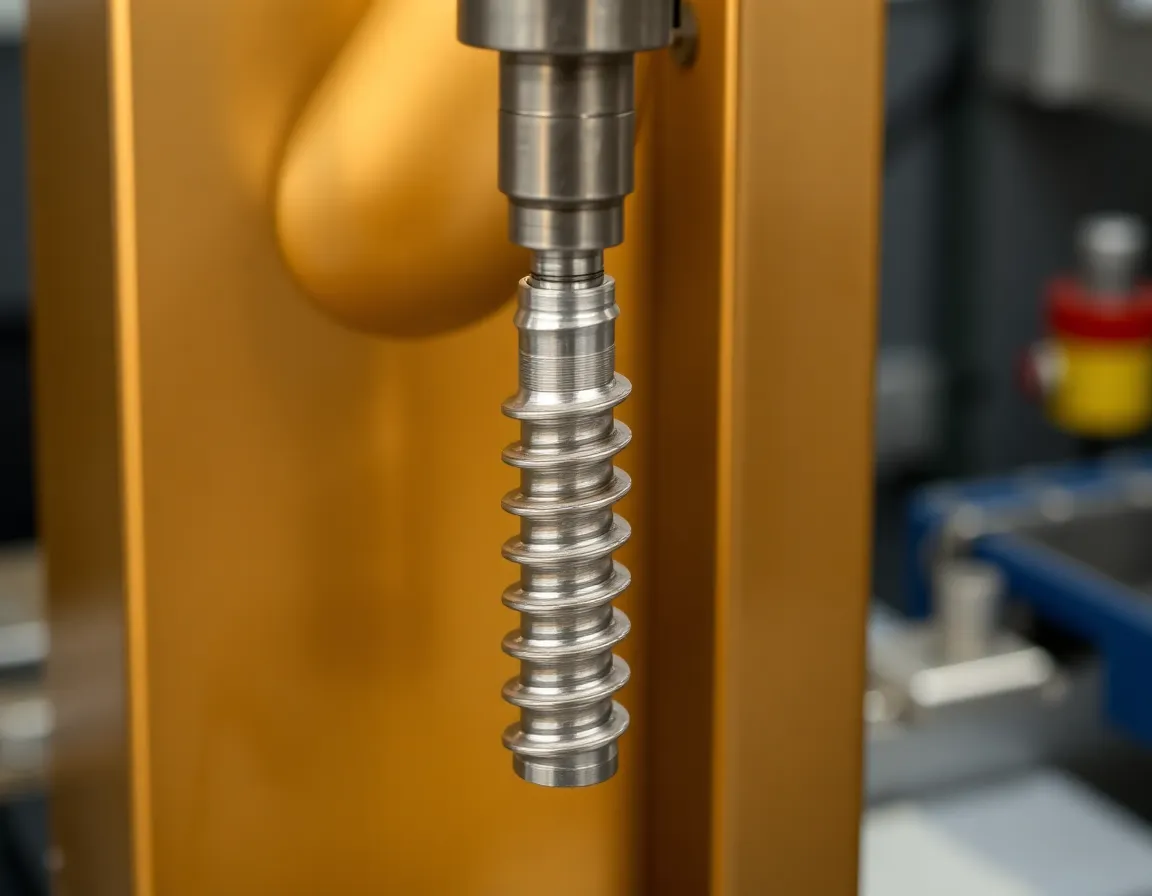

The Unseen Artistry: Where Engineering Meets Human Anatomy
In the realm of modern medicine, orthopedic implants stand as silent testaments to human ingenuity—artificial hips that restore mobility, spinal cages that alleviate pain, and trauma plates that mend shattered bones. Yet, before these devices can become part of a patient's story of recovery, they must be born from a process of extraordinary exactitude: precision machining. This is not mere manufacturing; it is the meticulous craft of transforming biocompatible metals, polymers, and ceramics into complex, life-sustaining components. The journey from raw material to a trusted implant hinges on a symphony of advanced technology, where tolerances are measured in microns and surface finishes can determine biological acceptance. This article delves into the critical world of orthopedic implant machining, exploring its processes, paramount importance, and the relentless pursuit of perfection that defines the field.
The Core of the Craft: Precision Machining Processes for Implants
Orthopedic implant machining employs a suite of advanced, computer-controlled subtractive manufacturing techniques. These processes remove material from a solid block or near-net-shape forging to achieve the final, intricate geometry of the implant. Each method is selected based on the material's properties and the component's design complexity.
Computer Numerical Control (CNC) Milling and Turning
CNC machining is the cornerstone of implant manufacturing. Multi-axis CNC milling centers, often with 5 or more axes of motion, can sculpt complex contours, threads, and porous structures from materials like titanium alloys (Ti-6Al-4V), cobalt-chromium alloys, and surgical-grade stainless steel. These machines follow digitally programmed toolpaths with exceptional repeatability, ensuring every implant in a batch is virtually identical. CNC turning is predominantly used for creating rotational symmetric parts like femoral stems or bone screw shafts.
Swiss-Type Machining
For long, slender components with tight diameter tolerances—such as spinal rods, pins, and small bone screws—Swiss-type lathes are indispensable. The guide bushing provides unparalleled support close to the cutting tool, allowing for extreme precision and fine surface finishes on delicate parts that would otherwise deflect during machining.
Electrical Discharge Machining (EDM)
EDM, particularly wire EDM, is used to machine extremely hard materials or create sharp internal corners that traditional cutting tools cannot achieve. It works by using controlled electrical sparks to erode material. This process is vital for creating intricate features in knee implant components or specialized tooling (molds and fixtures) used in the broader manufacturing process.
Grinding and Finishing Operations
After primary machining, implants undergo rigorous finishing. Precision grinding achieves the final dimensional tolerances and surface finish on bearing surfaces (like the head of a hip implant). A multi-step process of polishing, tumbling, and electropolishing then removes microscopic tool marks, creating a smooth, passive surface that minimizes wear debris and enhances biocompatibility.
Why Precision is Non-Negotiable: The Critical Benefits
The margin for error in orthopedic implant machining is effectively zero. The benefits of achieving such precision extend far beyond simple dimensional accuracy, directly impacting patient outcomes and implant longevity.
- Biomechanical Performance and Fit: An implant must integrate seamlessly with the patient's unique anatomy. Micron-level precision in the mating surfaces of a knee replacement, for example, ensures proper ligament tension and joint kinematics, restoring natural movement and preventing pain or instability.
- Osseointegration: Many modern implants feature porous surfaces or specialized coatings (like hydroxyapatite) that encourage bone growth into the implant. Precision machining creates consistent and optimized pore structures that are crucial for secure biological fixation, preventing implant loosening over time.
- Wear Reduction: The longevity of joint replacements is often limited by wear of the polyethylene insert. Ultra-smooth, precisely machined metal articulating surfaces drastically reduce friction and the generation of biologically reactive wear particles, which can cause inflammation, osteolysis (bone dissolution), and eventual implant failure.
- Material Integrity: Precision machining, when performed with optimized parameters, minimizes thermal and mechanical stress on the material. This preserves the fatigue strength and corrosion resistance of the alloy, which is critical for implants that must withstand millions of loading cycles over decades.
- Sterilizability and Cleanliness: Implants must be perfectly clean and sterile. A precisely machined surface with no pits, burrs, or crevices allows for effective cleaning and sterilization, eliminating potential havens for bacteria that could cause post-operative infection.
From Trauma to Reconstruction: Key Applications
Precision machining touches every category of orthopedic implant, enabling solutions for a wide spectrum of musculoskeletal conditions.
Joint Replacement Implants
This is the most demanding application. Components for total hip, knee, shoulder, and ankle replacements require the highest level of geometric complexity and surface finish. The femoral component of a hip stem, with its tapered neck and precisely radiused head, is a classic example of multi-axis CNC machining mastery.
Spinal Implants
The spine's complexity demands equally sophisticated implants. Machined components include interbody fusion cages (often with complex porous lattice structures), pedicle screws and rods for stabilization systems, and artificial discs. The threading on a spinal screw, machined to engage with vertebral bone without causing microfractures, is a critical precision feature.
Trauma and CMF Implants
Plates, screws, and pins used to fixate broken bones (trauma) or for craniomaxillofacial (CMF) reconstruction must often be contoured to match bone anatomy. Precision machining allows for the production of these often small, complex shapes with the strength needed for stabilization.
Sports Medicine and Arthroscopy
Implants like suture anchors, interference screws for ligament reconstruction, and small joint prostheses are typically very small and intricate, pushing the limits of micro-machining capabilities.
The Pillars of Excellence: Best Practices in Implant Machining
Producing a safe and effective orthopedic implant is governed by a rigorous framework of standards and best practices.
Adherence to Stringent Standards
All machining must be performed in compliance with international quality management systems, primarily ISO 13485 for medical devices, and specific material standards (ASTM F136 for titanium, etc.). The entire process is validated and controlled under a Quality Management System (QMS) that ensures traceability of every component back to its raw material batch.
Advanced Metrology and Inspection
Precision machining is meaningless without verification. State-of-the-art metrology tools are employed at every stage:
- Coordinate Measuring Machines (CMMs) for 3D geometric analysis.
- White light scanners and laser profilometers for capturing complex freeform surfaces.
- Surface roughness testers to quantify finish at the nano-level.
- Non-contact vision systems for high-speed inspection of small features.
Cleanroom Manufacturing and Contamination Control
Most precision machining for implants is conducted in controlled cleanroom environments to prevent particulate contamination. Dedicated machines, tools, and coolant filtration systems are used to maintain material purity and surface integrity.
Skilled Workforce and Digital Integration
While machines do the cutting, the process relies on highly skilled machinists, programmers, and engineers. The integration of Computer-Aided Design (CAD), Computer-Aided Manufacturing (CAM), and real-time machine monitoring creates a digital thread, allowing for seamless translation from design to finished part and enabling continuous process optimization.
Conclusion: Engineering a Better Quality of Life
Precision machining is the unsung hero in the story of orthopedic innovation. It is the critical bridge between brilliant implant design and a successful clinical outcome. The relentless focus on micron-level accuracy, impeccable surface science, and uncompromising quality control transforms inert materials into devices that mimic nature's own engineering. As patient expectations rise and implant designs become ever more personalized—moving towards patient-specific instruments and implants—the role of advanced, agile precision machining will only grow more vital. In the final analysis, the work done on the shop floor, guided by light from computer screens and verified by sensitive probes, is fundamentally work dedicated to human dignity: restoring movement, alleviating suffering, and crafting not just implants, but lasting freedom for patients around the world.
