In the relentless pursuit of precision, efficiency, and complexity in manufacturing, the evolution of CNC (Computer Numerical Control) technology stands as a defining force. While 3-axis vertical machining centers (VMCs) have long been the workhorses of machine shops, the advent and increasing accessibility of 5-axis CNC machining have fundamentally reshaped what is possible. This advanced capability, often integrated into modern vertical machining center services, represents not just an incremental improvement but a paradigm shift for producing intricate, high-value components. Mastering complex parts is no longer a question of extensive manual labor or multiple setups; it is a direct result of harnessing the power of 5-axis CNC technology.

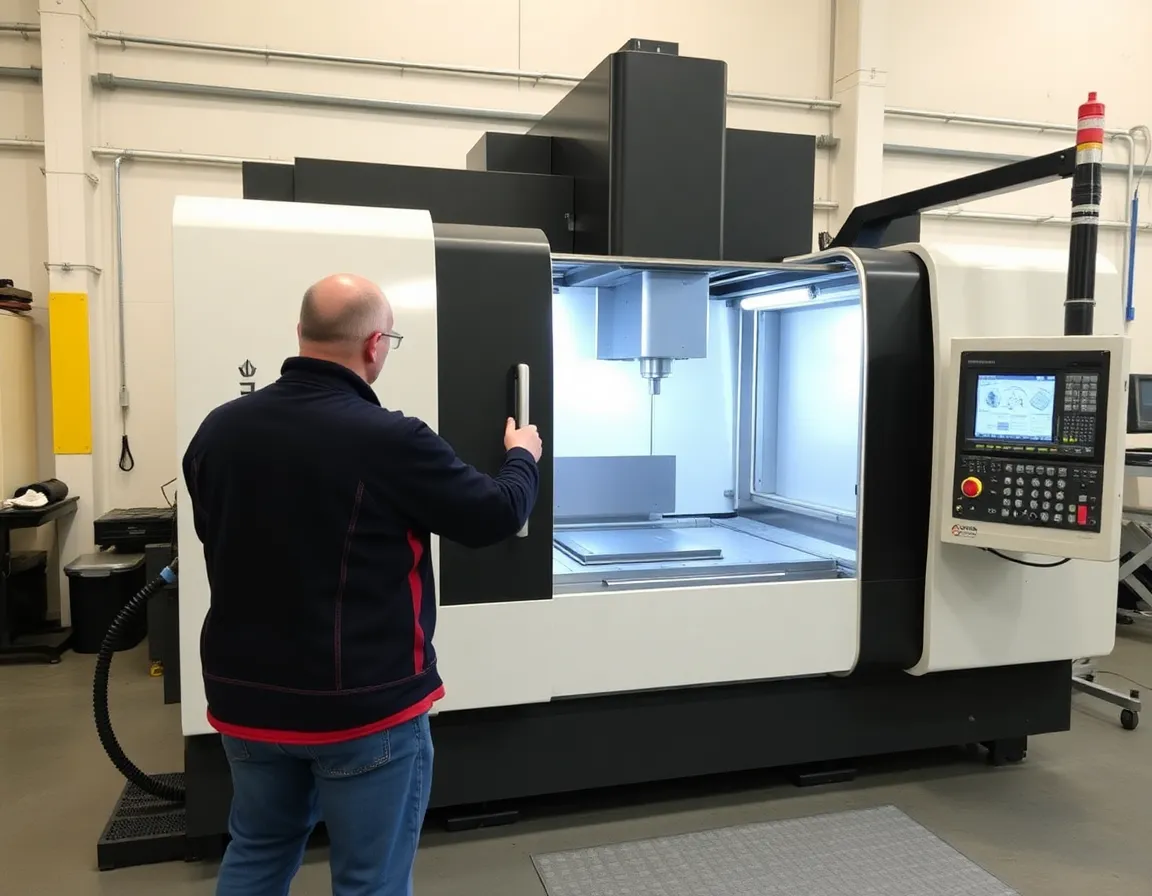

What is 5-Axis Machining on a Vertical Machining Center?
At its core, a 5-axis CNC machine operates on the same fundamental principle as a 3-axis VMC: a cutting tool removes material from a workpiece based on programmed instructions. The critical difference lies in the degrees of freedom. A standard 3-axis VMC moves the tool in the linear X, Y, and Z directions. A 5-axis machine adds two rotational axes, typically referred to as A and B, or C and A, depending on the configuration.
In the context of a vertical machining center, the most common 5-axis configurations are:
- Table-Table / Trunnion Style: The workpiece is mounted on a table that rotates (usually the A-axis) and tilts (usually the B-axis). The spindle head remains vertical but can move linearly in X, Y, and Z. This style is excellent for machining smaller to medium-sized parts.
- Head-Head Style:The workpiece remains stationary on a standard table, while the spindle head itself tilts and rotates. This configuration is better suited for very large or heavy workpieces.
- Table-Head Hybrid:A combination where both the table and the spindle head provide rotational movement, offering maximum flexibility.
This simultaneous movement in five axes allows the cutting tool to approach the workpiece from virtually any direction in a single setup, unlocking unprecedented geometric freedom.
The Transformative Benefits of 5-Axis CNC Machining
The shift from 3-axis to 5-axis machining within VMC services delivers a cascade of tangible benefits that directly impact part quality, lead time, and cost-effectiveness.
Unmatched Geometric Complexity
This is the most apparent advantage. 5-axis machining can effortlessly create complex contours, undercuts, deep cavities, and highly organic shapes that are impossible or prohibitively expensive to produce with traditional methods. It is indispensable for aerospace components (impellers, turbine blades), medical implants, complex molds, and architectural elements.
Single-Setup Machining (Done-in-One)
Eliminating multiple setups is a game-changer for accuracy and efficiency. In 3-axis machining, a part often needs to be manually repositioned to access different sides, introducing potential alignment errors (tolerance stacking) and increasing handling time. With 5-axis, the entire part can be machined in one clamping. This ensures superior positional accuracy between features and dramatically reduces total production time.
Improved Surface Finish and Tool Life
5-axis machining allows for optimized tool orientation. The tool can be tilted to maintain the most effective cutting position relative to the surface, ensuring the tip (rather than the side) does the bulk of the work. This results in a better surface finish, less hand finishing, and more consistent chip evacuation. Furthermore, by maintaining a constant chip load and optimal cutting angle, tool vibration is reduced, significantly extending tool life and lowering consumable costs.
Enhanced Efficiency with Shorter Tools
By tilting the workpiece or tool, the spindle can get closer to the part geometry. This allows the use of shorter, more rigid cutting tools that can operate at higher speeds and feeds without deflection. Shorter tools reduce vibration, improve accuracy, and allow for deeper cuts, further accelerating the machining process.
Key Applications Across Industries
The versatility of 5-axis vertical machining center services makes them critical across a spectrum of high-tech and demanding industries.
Aerospace and Defense
This sector is a primary driver of 5-axis technology. Components like monolithic airframe structures, engine mounts, landing gear parts, and complex ducting require machining from solid billet with intricate contours and tight tolerances. 5-axis machining delivers the strength-to-weight ratio and precision essential for flight.
Medical and Dental
From patient-specific orthopedic implants (knees, hips, spinal cages) to surgical instruments and dental prosthetics, medical parts demand biocompatible materials (like titanium and PEEK), complex organic shapes, and flawless surface finishes. 5-axis CNC is perfect for these low-volume, high-precision applications.
Automotive and Motorsport
High-performance engines, lightweight chassis components, complex intake manifolds, and custom prototype parts all benefit from 5-axis machining. The ability to quickly iterate designs and produce strong, precise components directly from CAD models is invaluable in both production and racing environments.
Energy and Turbomachinery
Impellers, compressors, and turbine components feature complex blade geometries that are aerodynamic and structurally sound. 5-axis machining is the only practical method to produce these parts from materials like Inconel or titanium with the required precision and surface integrity.
Mold and Die Making
Creating intricate injection molds, die-casting dies, and forging dies with deep cavities and complex cores is vastly more efficient with 5-axis machining. It reduces EDM (electrical discharge machining) requirements and allows for better surface finishes directly from the mill, speeding up the entire tooling production process.
Best Practices for Leveraging 5-Axis VMC Services
Successfully mastering complex parts with 5-axis machining requires more than just purchasing a machine. It demands a holistic approach to design, programming, and process planning.
Design for Manufacturability (DFM) with 5-Axis in Mind
Collaborate early with your machining service provider. Designers should understand the machine's capabilities to avoid unnecessary complexity. While 5-axis can handle incredible geometries, simplifying tool paths where possible reduces machining time and cost. Consider tool access, internal radii, and feature depth during the design phase.
Advanced CAM Programming is Non-Negotiable
The power of a 5-axis machine is unlocked by sophisticated CAM (Computer-Aided Manufacturing) software. Programmers must be experts in generating efficient, collision-free tool paths that leverage simultaneous 5-axis movement. Techniques like swarf machining, multi-axis contouring, and tool axis control are essential skills. Simulation within the CAM system is critical to verify the program and avoid costly crashes.
Rigorous Workholding and Setup
Even with single-setup machining, secure and precise workholding is paramount. Custom fixtures, vise systems, and tombstones must be designed to hold the part rigidly while avoiding interference with the rotating spindle or table. Accurate workpiece zero-point setting is more complex but crucial for 5-axis success.
Invest in Skilled Personnel and Training
The technology is only as good as the people running it. A successful 5-axis operation needs a blend of skilled machinists, expert CNC programmers, and knowledgeable process engineers. Continuous training on both machine operation and advanced CAM software is a necessary investment.
Choosing the Right Service Partner
When outsourcing, select a cnc vertical machining center serviceprovider with a proven track record in 5-axis work. Evaluate their machine portfolio (brand, age, capabilities), software expertise, quality control systems (like on-machine probing), and experience in your specific industry. Review case studies and ask for sample parts to assess their true capability.
In conclusion, 5-axis CNC machining integrated into vertical machining center services is no longer a niche technology reserved for the aerospace elite. It has become an essential tool for any manufacturer aiming to innovate, compete, and excel in today's market. By enabling the production of lighter, stronger, and more complex parts in less time and with greater accuracy, it represents the forefront of subtractive manufacturing. Mastering complex parts is not just about having the machine; it's about mastering the entire ecosystem of design, programming, and process knowledge that surrounds this transformative technology. For businesses looking to push the boundaries of what's possible, embracing 5-axis capabilities is not just an option—it is the definitive path forward.
