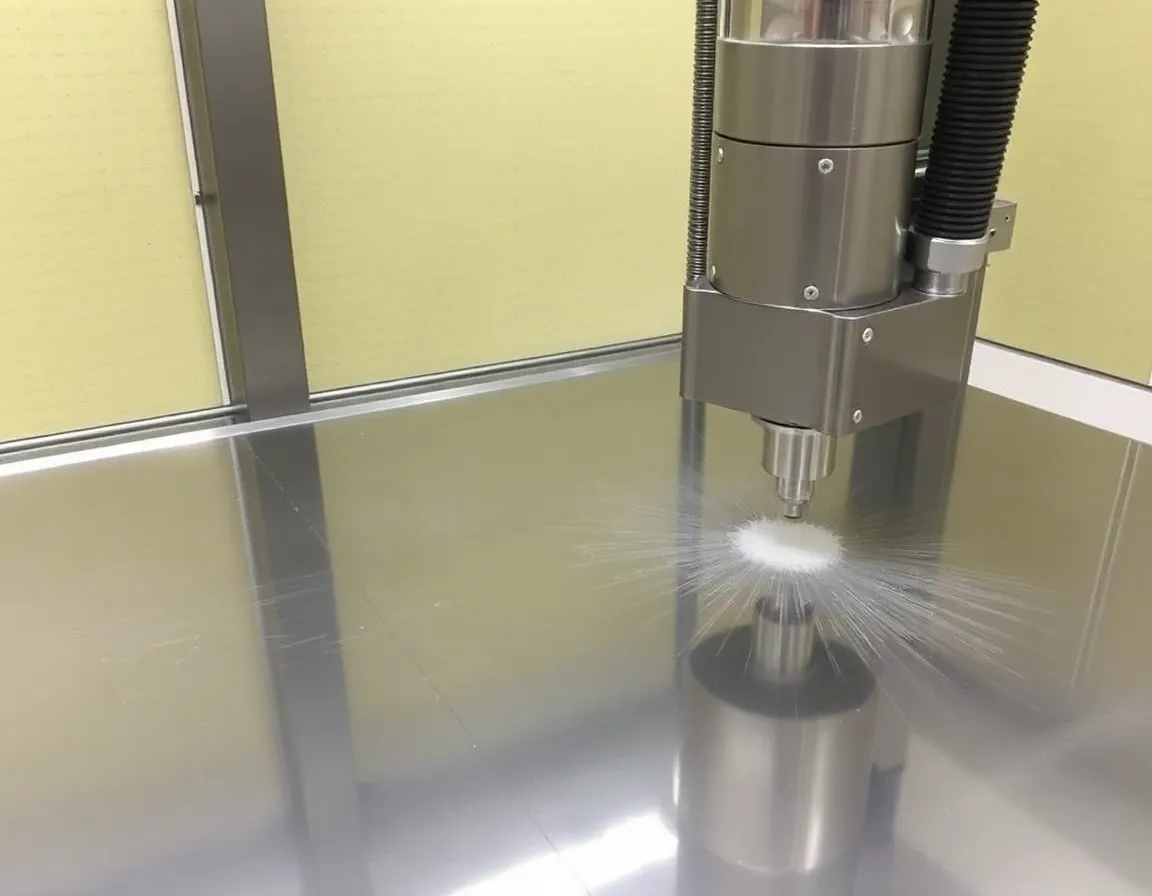

Precision CNC Surface Finishing Services & Solutions

Advantages

Superior Surface Quality & Consistency

Achieves precise, repeatable finishes that manual methods cannot match, enhancing product aesthetics and function.

Reduced Production Time & Costs

Automated CNC finishing is faster than manual labor, lowering labor costs and accelerating project completion.

Complex Geometry Capability

Machines intricate contours and hard-to-reach areas with high precision, enabling sophisticated part designs.

Enhanced Part Performance & Longevity

Precise finishing reduces friction, improves wear resistance, and ensures better sealing for critical components.

Beyond the Cut: Why CNC Surface Finishing is the Final Frontier of Quality

Computer Numerical Control (CNC) machining has revolutionized manufacturing, enabling the creation of parts with astonishing geometric complexity and tight tolerances. However, the journey from a raw block of material to a finished, functional component doesn't end when the cutting tools stop spinning. The surface left by milling, turning, or drilling is rarely the final desired state. This is where specialized CNC surface finishing services come into play. These post-machining processes are the critical final step that transforms a machined part into a polished product, defining not only its aesthetics but also its performance, durability, and user experience. Mastering these finishes is essential for any project demanding excellence.

What Are CNC Surface Finishing Services?

CNC surface finishing refers to a suite of processes applied to a machined part after the primary material removal operations are complete. While CNC machines can achieve excellent surface roughness directly (often measured in Ra – average roughness), many applications require specific textures, appearances, or material properties that go beyond what a cutting tool can produce. Finishing services bridge this gap, manipulating the part's outermost layer to meet precise specifications.

These services can be broadly categorized by their mechanism of action: additive (adding a coating, like painting or plating), subtractive (removing material, like polishing or blasting), transformative (changing the surface structure, like heat treating), or rearranging (moving material without significant removal, like burnishing). The choice depends entirely on the part's material, function, and end-use environment.

A Guide to Common CNC Surface Finishing Techniques

Selecting the right finish requires understanding the options. Here’s an overview of the most prevalent techniques offered by professional finishing services.

Mechanical & Abrasive Finishes

These methods use physical force and abrasives to alter the surface texture.

Sanding and Polishing: A progressive series of abrasives, from coarse to fine grits, is used to eliminate tool marks and create a smooth, reflective surface. This can range from a uniform satin brush to a mirror-like polish.
Bead & Media Blasting: Propelling small media (glass beads, aluminum oxide, plastic, etc.) at high velocity cleans the surface, creates a uniform matte texture, deburrs, and can induce compressive stress for improved fatigue life.
Tumbling and Vibratory Finishing: Parts are placed in a container with abrasive media and rotated or vibrated. This is a highly efficient batch process for deburring, radiusing edges, descaling, and producing smooth, consistent finishes on large quantities of small parts.
Burnishing: A hard, polished tool is rolled against the surface under pressure, cold-working the metal to create a dense, smooth, and work-hardened surface. It's excellent for improving surface roughness and wear resistance on bores and shafts.

Chemical & Electrochemical Finishes

These processes use chemical reactions to treat the surface.

Anodizing (for Aluminum): An electrochemical process that thickens and toughens the natural oxide layer. It dramatically improves corrosion resistance, allows for dyeing in various colors, and enhances surface hardness. Type II is for corrosion and color, Type III (hardcoat) is for extreme wear resistance.
Passivation (for Stainless Steel): A chemical bath removes free iron particles from the surface, restoring the chromium-rich oxide layer. This maximizes stainless steel's inherent corrosion resistance, a critical step for medical, aerospace, and food-grade components.
Electroplating: A layer of metal (such as chrome, nickel, zinc, or gold) is deposited onto the part via an electrical current. It provides sacrificial corrosion protection (zinc), increases surface hardness and wear resistance (chrome, nickel), or improves solderability and conductivity (gold, silver).
Chemical Etching: Controlled chemical removal of material to create specific surface textures, deburr complex geometries, or prepare a surface for bonding or painting.

Coatings & Advanced Treatments

These add a new, functional layer to the component.

Powder Coating: A dry, electrostatically charged powder (polymer) is applied and then cured under heat to form a durable, thick, and attractive protective layer. Available in virtually any color and texture, it offers superior corrosion and impact resistance compared to many liquid paints.
PVD (Physical Vapor Deposition): A thin, ultra-hard ceramic or metal coating (like TiN, TiCN, or CrN) is deposited in a vacuum. It provides exceptional hardness, wear resistance, and low friction, often used for cutting tools, molds, and high-wear components.
Heat Treating & Case Hardening: Processes like carburizing or nitriding alter the microstructure of the metal's surface, increasing its hardness and wear resistance while maintaining a tougher core. Essential for gears, bearings, and tooling.

The Tangible Benefits: More Than Just Good Looks

Investing in the right surface finish yields profound benefits that extend far beyond cosmetics.

Enhanced Durability & Wear Resistance: Hard coatings, treatments, and work-hardened surfaces drastically reduce friction and abrasion, extending the part's service life in demanding applications.
Superior Corrosion Protection: Finishes like anodizing, plating, and powder coating create a barrier against moisture, chemicals, and environmental factors, preventing rust and degradation.
Improved Cleanliness & Hygiene: A smooth, non-porous, and easily cleanable surface is non-negotiable for medical devices, pharmaceutical equipment, and food processing machinery. Passivation and specific polished finishes are key here.
Optimized Functionality: Surface texture affects friction, light reflection, electrical conductivity, and adhesion. A properly finished surface ensures the part performs its intended function reliably.
Elevated Aesthetic & Brand Value: The visual and tactile quality of a product communicates value. A consistent, professional finish enhances user perception and brand reputation.
Facilitated Assembly: Deburring and radiusing edges prevent injury during handling and ensure proper fit with other components. Smooth finishes also aid in sealing and gasket performance.

Best Practices for Specifying and Mastering Surface Finishes

To successfully integrate finishing into your project, follow these guidelines.

1. Define Requirements from the Start

Don't treat finishing as an afterthought. During the design phase, ask critical questions: Will the part face corrosion? Does it need to withstand wear? Is it a visual consumer product? What are the cleaning protocols? The answers will guide your finish selection and may influence the base material choice (e.g., aluminum for anodizing, stainless for passivation).

2. Communicate with Clear Specifications

Vague terms like "smooth" or "shiny" are insufficient. Use industry-standard callouts on your technical drawings:

Surface Roughness (Ra): Specify a maximum Ra value (e.g., "Ra 0.8 μm") for machined surfaces.
Finish Type: Call out the specific process (e.g., "Type II Anodize, Black," "Passivate per ASTM A967," "Media Blast to Uniform Satin Finish").
Geometric Considerations: Indicate if certain features (like threads, bores, or sealing surfaces) must be masked or treated specially.

3. Partner with an Experienced Service Provider

A professional CNC surface finishing service is an invaluable partner. They offer expertise in process selection, proper preparation (cleaning is 90% of a good finish), sequencing of operations, and quality control. They can also provide test samples or run small batches to validate the result before full production.

4. Consider Dimensional Impacts

Many finishes add thickness (coatings, plating, anodizing) or remove a tiny amount of material (etching, polishing). This must be accounted for in your critical dimensions. Work with your finisher to understand the "growth" or "loss" of your part and machine initial dimensions accordingly. Specifying the finish on the drawing ensures the machinist accounts for this.

5. Prototype and Test

Whenever possible, produce finished prototypes and subject them to real-world or simulated conditions. Test for corrosion resistance, adhesion, wear, and color fastness. This validation step prevents costly mistakes in full-scale production.

Conclusion: The Defining Touch

In the world of precision manufacturing, the surface is the interface between your engineering and the real world. Mastering CNC surface finishes is not a mere detail—it is the defining touch that unlocks a component's full potential. By understanding the vast array of techniques, their functional benefits, and the best practices for implementation, you can make informed decisions that elevate your project from merely "machined" to truly "finished." Whether the goal is to survive a harsh environment, glide with minimal friction, impress with visual appeal, or simply function flawlessly, the right surface finish service is the key to success. Partner wisely, specify clearly, and let the final surface be a testament to the quality engineered within.

Frequently Asked Questions

What exactly are CNC surface finishing services?

CNC surface finishing services refer to the post-machining processes applied to a part after it has been cut or shaped by a CNC (Computer Numerical Control) machine. While CNC machining creates the part's geometry, finishing refines its surface texture, appearance, and properties. This encompasses a wide range of techniques, from basic manual methods like sanding to highly automated ones like tumbling, vibratory finishing, polishing, anodizing, powder coating, and bead blasting. The goal is to achieve specific functional outcomes such as reduced friction, improved corrosion resistance, or enhanced cleanliness, as well as aesthetic results like a matte, glossy, or textured look tailored to the part's final application.

How does the process for CNC surface finishing services work?

The process typically follows a structured workflow. First, the raw CNC-machined part is cleaned to remove oils and debris. Next, based on the desired specification (e.g., Ra surface roughness, coating thickness), a specific finishing method is selected and applied. For mechanical finishes like tumbling, parts are placed in a media-filled barrel. For coatings like anodizing, parts undergo electrochemical immersion. The process is often batch-based for efficiency. Finally, parts are thoroughly cleaned, inspected (often with profilometers for roughness or gauges for coating thickness), and prepared for shipment. Reputable providers work closely with clients to understand the part's material, function, and end-use to determine the optimal finishing sequence.

What are the key benefits of using professional CNC surface finishing services?

Utilizing professional CNC surface finishing services delivers significant functional, aesthetic, and commercial advantages. Functionally, finishes dramatically improve part performance by increasing wear resistance, reducing friction, enhancing sealing capabilities, and preventing corrosion or contamination. Aesthetically, they provide a uniform, high-quality appearance that elevates product value and brand perception. From a practical standpoint, finishes make parts easier to clean and maintain. Perhaps most importantly, specialized finishing can extend a component's lifespan, reducing long-term replacement costs and failure rates. By outsourcing to experts, you also gain access to industrial-grade equipment and technical knowledge that ensures consistent, repeatable results difficult to achieve in-house.

I'm concerned about part dimensions changing. How do CNC surface finishing services maintain tight tolerances?

Maintaining critical dimensions is a primary concern and a key differentiator for expert CNC surface finishing services. Professional finishers meticulously select and control their processes based on your tolerance requirements. For instance, they will specify the exact amount of material removal for a process like vibratory finishing or electropolishing, often just a few microns. For coatings like anodizing or plating, they precisely manage the deposition thickness. Communication is vital; providing detailed drawings with tolerance callouts for both geometry and finish allows the finisher to choose the appropriate method and parameters. They also employ rigorous in-process quality checks using precision instruments like micrometers and coating thickness gauges to ensure the finished part remains within your specified limits.

How are CNC surface finishing services priced, and what is the typical order process?

Pricing for CNC surface finishing services is usually quoted per part or per batch and depends on several factors: the chosen finishing technique, part complexity (size, geometry, blind holes), material, volume, and required quality certifications. Simpler, high-volume batches generally have a lower per-part cost. The process typically starts with you submitting a part sample or detailed drawings along with your specifications (e.g., "Type III Anodize, 0.002" thick, matte black"). The service provider will then analyze the requirements, often performing a test run, and provide a formal quote. Upon approval, they will schedule your order into their production line, process the parts, conduct final inspection, and ship them. Clear upfront communication about expectations and timelines is crucial for a smooth experience.
