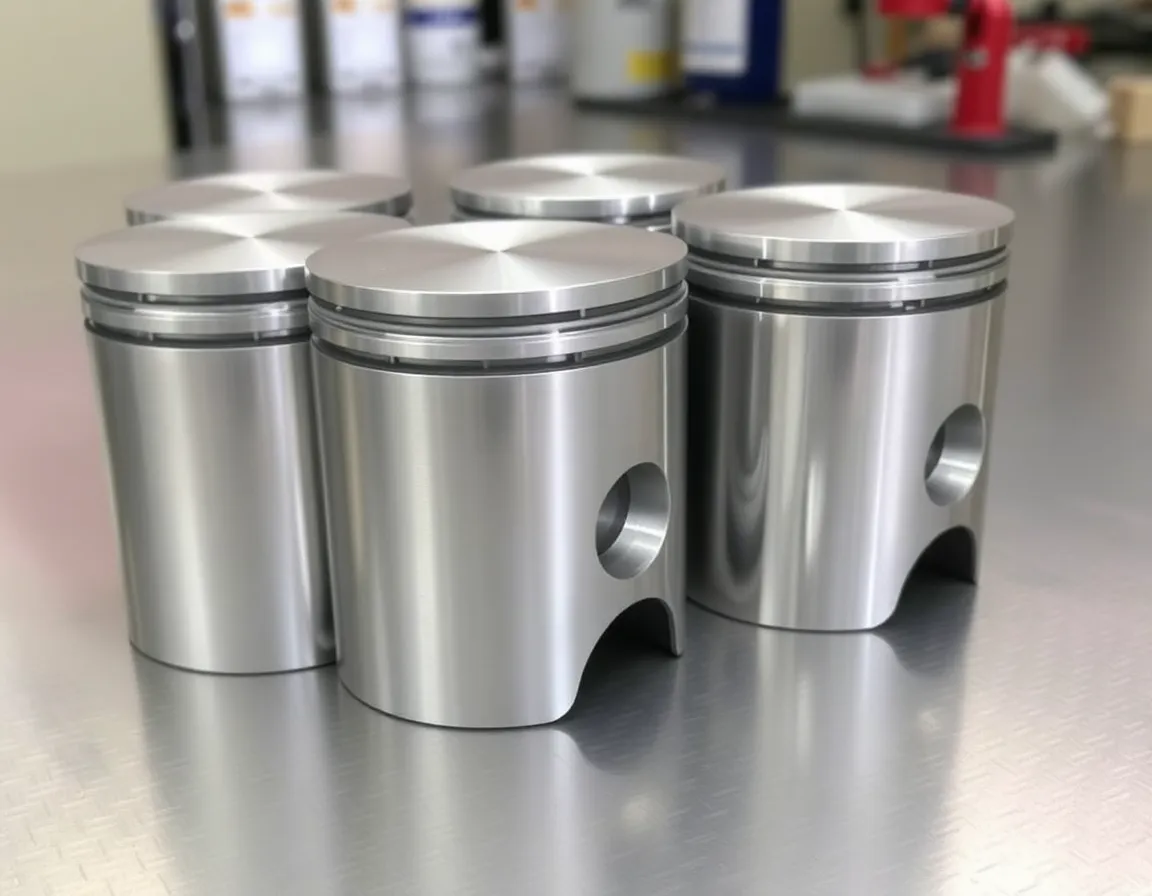

The Precision Revolution: Understanding Custom CNC Pistons
In the world of high-performance engines, the piston is arguably the most stressed component. It must withstand extreme heat, immense pressure, and rapid reciprocating motion, all while maintaining a perfect seal within the cylinder bore. For decades, manufacturers relied on casting or forging processes, but the modern era has ushered in a new standard of excellence: the custom CNC piston. These pistons, machined from solid billet aluminum or high-strength steel using Computer Numerical Control (CNC) technology, represent the pinnacle of precision engineering. Unlike mass-produced parts, a CNC machined piston is designed and manufactured to meet the exact specifications of a specific engine build, offering unparalleled performance, reliability, and power potential.
This article will delve deep into the world of custom CNC pistons, exploring the manufacturing process, the tangible benefits they offer, the diverse applications across motorsports and high-performance street builds, and the critical best practices for selecting and installing them. Whether you are a professional engine builder or an enthusiast seeking every last horsepower, understanding the role of these precision components is essential to unlocking the true potential of your engine.
What Are CNC Machined Pistons and How Are They Made?
At its core, a CNC machined piston is a piston that is carved from a solid block of material—typically a high-strength aluminum alloy like 2618 or 4032—using a computer-controlled milling machine. This subtractive manufacturing process is fundamentally different from casting (where molten metal is poured into a mold) or forging (where a heated billet is hammered into shape). The result is a component with superior material integrity, tighter tolerances, and a level of design flexibility that is simply impossible with traditional methods.
The CNC Machining Process
The journey of a custom CNC piston begins with a 3D CAD model. The engine builder and the piston manufacturer collaborate to define every critical dimension: bore diameter, compression height, wrist pin location, ring groove depth and width, dome volume, and skirt profile. This digital blueprint is then fed into a CAM (Computer-Aided Manufacturing) program, which generates the precise toolpaths for the CNC machine.
- Step 1: Material Selection: A high-quality billet of aluminum alloy is chosen. 2618 aluminum is favored for its high heat resistance and durability in forced induction and nitrous applications, while 4032 offers lower thermal expansion and is excellent for naturally aspirated builds.
- Step 2: Rough Machining: The CNC machine uses large cutting tools to rapidly remove the bulk of the material, forming the rough shape of the piston. This is a high-speed, high-volume process.
- Step 3: Precision Finishing: Smaller, more intricate tools are used to finish the piston. This includes machining the ring lands with micron-level accuracy, cutting the wrist pin bore to a precise tolerance (often within 0.0002 inches), and creating the complex valve reliefs or dome shapes.
- Step 4: Skirt Profiling: The piston skirt is machined with a specific barrel shape and cam grind. This is not a simple cylinder; it is a complex profile that accounts for thermal expansion. The skirt is wider at the bottom and narrower at the top, and slightly oval, ensuring proper contact with the cylinder wall when the engine is at operating temperature.
- Step 5: Final Inspection and Coating: Every piston is meticulously inspected using coordinate measuring machines (CMM) to verify all dimensions. Many high-end custom pistons then receive advanced coatings, such as a thermal barrier coating on the crown or a low-friction skirt coating, to further enhance performance and longevity.
Why Billet Over Forged or Cast?
The primary advantage of a CNC machined piston over a forged or cast piston is material consistency. Forging can create internal stress points and grain flow that, while strong, can be unpredictable. Casting can introduce porosity (tiny air pockets) that weakens the part. Billet material, however, is uniformly dense and free of internal flaws. This allows engineers to design pistons with thinner, lighter walls in non-critical areas without sacrificing strength, and add material precisely where it is needed most—for example, around the wrist pin boss or under the crown. The result is a piston that is both lighter and stronger than its counterparts.
Key Benefits of Custom CNC Pistons for Performance Engines
The decision to invest in custom CNC pistons is driven by a clear set of performance advantages. These benefits are not just theoretical; they translate directly into measurable gains on the dynamometer and the racetrack.
Unmatched Precision and Consistency
The most significant benefit is the extreme precision of the machining process. A CNC machine can hold tolerances of ±0.0001 inches (0.0025mm) or better. This means that every piston in a set is virtually identical in weight, size, and shape. This consistency is critical for high-rpm engines because it ensures that each cylinder produces the same amount of power and experiences the same forces. Balanced rotating assemblies reduce vibration, decrease bearing wear, and allow for higher safe operating speeds.
Optimized Weight and Strength
Custom CNC pistons are designed using finite element analysis (FEA) software. Engineers can simulate the immense stresses of combustion and reciprocating motion and then remove material from areas that are not under high load. This "stress-based design" allows for pistons that are significantly lighter than their off-the-shelf counterparts. A lighter piston reduces reciprocating mass, which in turn allows the engine to rev faster, reduces loads on the connecting rod and crankshaft, and frees up horsepower that would otherwise be wasted accelerating heavy components.
Tailored Compression Ratios and Combustion Chamber Design
One of the most powerful features of a custom CNC piston is the ability to precisely control the compression ratio. Whether you need a high compression ratio for a naturally aspirated race engine (e.g., 14:1) or a lower, boost-friendly ratio for a turbocharged build (e.g., 8.5:1), the piston dome or dish can be machined to achieve the exact target. Furthermore, the valve reliefs can be custom-cut to accommodate massive aftermarket camshafts with high lift and duration, preventing catastrophic valve-to-piston contact. The shape of the piston crown can also be optimized to work in harmony with the cylinder head's combustion chamber, promoting better flame propagation and fuel atomization for improved efficiency and power.
Superior Heat Management
High-performance engines generate enormous heat. Custom CNC pistons can be designed with specific features to manage this thermal load. This includes oil galleries machined into the piston for cooling oil jets, optimized ring groove placement to reduce heat transfer to the oil, and the aforementioned thermal barrier coatings. By keeping the piston cooler, the engine can run more aggressive ignition timing and higher boost pressures without the risk of detonation or pre-ignition, which are the primary killers of high-performance pistons.
Applications: Where Custom CNC Pistons Excel
The versatility of custom CNC pistons makes them the component of choice for a wide range of demanding applications.
Professional Motorsports
From Formula 1 and IndyCar to NASCAR and drag racing, every top-tier motorsport relies on custom CNC pistons. The need for maximum power, minimum weight, and absolute reliability at extreme RPMs (often exceeding 10,000 RPM) leaves no room for compromise. Teams work directly with manufacturers to develop unique piston designs for each race, factoring in track conditions, fuel type, and engine configuration. In these environments, the cost of a custom piston is a small price to pay for a potential victory.
High-Performance Street and Track Cars
For enthusiasts building a potent street car or a dedicated track-day machine, custom CNC pistons are a popular upgrade. Whether it's a turbocharged 2JZ-GTE, a supercharged LS V8, or a high-compression Honda K-series, a custom piston allows the builder to extract every last bit of performance from the engine. The ability to spec a specific compression ratio for a given octane fuel or boost level is invaluable. Furthermore, the increased reliability provided by a billet piston gives peace of mind when pushing the engine to its limits on the street or the circuit.
Specialty and One-Off Engine Builds
Restorers of classic or rare engines often find that original pistons are no longer available. Custom CNC machining offers the perfect solution. A manufacturer can reverse-engineer an original piston from a sample and create a modern, high-performance replacement that fits perfectly. This is also the go-to solution for builders of custom motorcycle engines, marine engines, and aircraft engines, where off-the-shelf parts simply do not exist. The flexibility of CNC machining means that any piston, for any application, can be created from a digital file.
Best Practices for Selecting and Using Custom CNC Pistons
Investing in custom CNC pistons is a significant step. To ensure success, follow these best practices.
Work with a Reputable Manufacturer
Not all CNC machine shops are created equal. Look for a company with a proven track record in the motorsports industry, such as JE Pistons, CP-Carrillo, Wiseco, or Diamond Pistons. These manufacturers have the engineering expertise, advanced software, and high-quality materials to produce a reliable product. They can also provide valuable guidance on piston-to-wall clearance, ring gap specifications, and coating options.
Measure Everything, Twice
Before ordering, you must have accurate measurements of your engine block and cylinder head. This includes the exact bore diameter, deck height, connecting rod length, crankshaft stroke, and valve sizes and locations. A single error in measurement can result in a piston that does not fit, has the wrong compression height, or contacts the valves. Always provide your engine builder's specifications to the piston manufacturer.
Proper Assembly and Clearance
Custom CNC pistons require precise assembly. Do not assume that standard clearances apply. The manufacturer will provide specific piston-to-wall clearance and ring end gap recommendations based on the piston material and your intended application (e.g., turbocharged vs. naturally aspirated). Failure to follow these specifications can lead to piston scuffing (too tight) or piston slap and ring failure (too loose). Use a high-quality ring filer and a bore gauge to ensure every clearance is correct.
Consider Coatings as an Investment
While they add to the upfront cost, high-performance coatings are highly recommended. A thermal barrier coating (e.g., ceramic) on the piston crown reflects heat back into the combustion chamber, increasing power and reducing piston temperature. A low-friction skirt coating (e.g., molybdenum or graphite) reduces wear during cold starts and minimizes friction at high RPM. These coatings can significantly extend the life of your custom pistons, especially in demanding forced induction applications.
Conclusion: The Ultimate Foundation for Power
Custom CNC pistons represent the intersection of art and engineering. They are not merely a replacement part; they are a fundamental building block for any engine that demands the highest level of performance and reliability. By leveraging the precision of computer-controlled machining and the strength of modern materials, these pistons allow engine builders to push the boundaries of what is possible. From the roar of a top-fuel dragster to the scream of a high-revving track car, the custom CNC machined piston is the silent, enduring foundation of every great power plant. For those who refuse to settle for "good enough," the investment in a set of custom CNC pistons is the definitive path to precision power.
