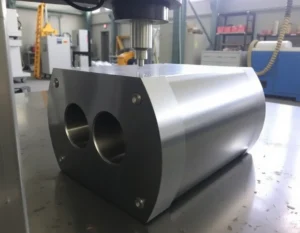

The Alloy of Champions: Understanding 7075 Aluminum
In the world of high-performance metals, 7075 aluminum stands as a titan. Often referred to as "aircraft aluminum" or "zinc-aluminum," it is the go-to alloy for applications where strength, durability, and lightweight properties are non-negotiable. Unlike more common machining alloys like 6061, 7075 is a precipitation-hardened alloy, primarily composed of aluminum, zinc, magnesium, and copper. This specific blend, particularly its high zinc content (5.6-6.1%), is the key to its exceptional strength.
To put its capabilities in perspective, 7075-T6 aluminum—the most common temper—boasts a tensile strength of roughly 83,000 psi (572 MPa), which is comparable to many grades of steel. Yet, it retains aluminum's signature advantage: it weighs about one-third as much. This formidable strength-to-weight ratio makes it indispensable in aerospace frames, military equipment, high-stress automotive components (like suspension parts), and high-performance sporting goods such as bicycle frames and climbing gear.
However, this impressive strength comes with a machining personality of its own. While it machines well and can produce beautiful, clean chips, its toughness and abrasiveness demand respect and a specific set of strategies. Mastering 7075 aluminum machining is about leveraging its strengths while mitigating the challenges of tool wear and achieving the desired surface finish.
Navigating the Challenges: Why 7075 Demands Respect
Before diving into techniques, it's crucial to understand what makes machining 7075 different. Its high strength is the primary factor, but this manifests in specific ways on the shop floor.
Abrasive Nature and Tool Wear
The hard, intermetallic particles within the 7075 matrix, particularly those formed by its alloying elements, are highly abrasive. This accelerates flank wear and cratering on cutting tools. Using tools designed for softer aluminum can lead to rapid failure, poor surface finish, and increased cost per part.
Work Hardening and Built-Up Edge (BUE)
Although less prone to work hardening than some stainless steels, 7075 can still exhibit this phenomenon if machined with improper parameters—especially low feed rates or a dull tool. This creates a hardened layer on the workpiece, making subsequent passes even more difficult. Conversely, under the right conditions, a slight built-up edge can sometimes be beneficial, but an unstable BUE leads to poor surface finish and dimensional inaccuracy.
Chip Control and Heat Management
7075 typically produces nice, broken chips. The real challenge is managing the heat generated. While aluminum conducts heat away quickly, excessive heat at the cutting zone can soften the tool substrate (especially carbide) and prematurely degrade the coating. It can also thermally expand the workpiece, affecting tolerances. Effective heat evacuation is paramount.
The Machinist's Playbook: Best Practices for 7075
Success with 7075 aluminum hinges on a holistic approach that encompasses tool selection, machine parameters, and technique. Here is a detailed guide to optimizing your process.
Tooling Selection: The Foundation of Success
Choosing the right tool is not a place to cut corners. The following principles are critical:
- Material: Use micro-grain or sub-micro-grain carbide for optimal hardness and edge sharpness. High-speed steel (HSS) is generally not recommended for production work due to rapid wear.
- Geometry: Opt for tools with sharp, highly polished rake faces and positive rake angles. This reduces cutting forces and heat generation. Tools designed specifically for aluminum will have deep, polished flutes for excellent chip evacuation.
- Coatings: While uncoated, polished carbide works well, advanced coatings like Diamond-Like Carbon (DLC) or physical vapor deposition (PVD) coatings can dramatically increase tool life by reducing friction and adhesion.
- Tool Rigidity: Use the shortest possible tool length and the largest possible shank diameter to minimize deflection, which is crucial for maintaining tolerance and preventing chatter.
Optimizing Cutting Parameters
Running your machine with the correct speeds and feeds is the single most important factor after tool selection.
- Speed (SFM): 7075 can handle and often benefits from high surface speeds. A good starting range is 600-1000 SFM for carbide end mills. Higher speeds can actually help produce thinner chips and carry heat away in the chip, provided your setup is rigid and stable.
- Feed Rate (IPT): Do not "baby" the cut. Use an aggressive chip load per tooth to ensure the tool is cutting cleanly, not rubbing. Rubbing creates heat and work hardening. A chip load of 0.003-0.010 inches per tooth (IPT) is a common starting point, adjusting based on tool diameter and operation.
- Depth of Cut (DOC) & Width of Cut (WOC): For roughing, use adaptive or trochoidal milling strategies with a high axial depth of cut (full flute length if possible) and a low radial engagement (5-10% of tool diameter). This keeps cutting forces steady, reduces heat in the tool, and extends tool life dramatically.
Coolant and Lubrication Strategy
Flood coolant is highly recommended. Its purposes are threefold: to cool the tool and workpiece, to lubricate the cutting edge to prevent material adhesion, and to flush chips away from the cut. For optimal results:
- Use a high-quality, water-soluble coolant designed for aluminum.
- Ensure the coolant nozzle is positioned to directly hit the cutting zone.
- For high-speed machining (HSM), through-tool coolant is extremely effective at both cooling and chip evacuation.
- If using a mist system, ensure it provides adequate lubrication, as 7075 can be "sticky."
Advanced Techniques and Finishing Considerations
Once the fundamentals are in place, fine-tuning your approach can yield even better results and tackle complex operations.
Drilling and Tapping
Drilling 7075 requires sharp, polished drills with a high helix angle (often called "fast spiral") for efficient chip evacuation. Peck drilling may be necessary for deep holes to clear chips. When tapping, use taps designed for aluminum with polished flutes. A good tapping fluid or high-concentration coolant is essential to prevent galling and tap breakage. For critical threads, thread milling offers superior control, tool life, and chip management.
Achieving Superior Surface Finishes
For fine finishing passes, increase the speed slightly and reduce the feed rate to achieve a better surface finish. However, ensure the chip load remains high enough to avoid rubbing. Using a tool with a dedicated finishing geometry and a larger corner radius can also help. Ball nose end mills for 3D contouring should be run with similar high-speed, consistent engagement principles to avoid scalloping and chatter.
Workholding and Machine Considerations
Given the high material removal rates possible with 7075, a rigid setup is non-negotiable. Use a vise with solid jaws, proper step clamps, or a fixture plate. The machine itself should be in good condition with minimal play; a CNC machine with high rigidity and spindle speed capability is ideal for unlocking 7075's full machining potential.
Conclusion: Harnessing the Strength
Mastering 7075 aluminum machining is a rewarding endeavor that opens the door to manufacturing some of the most demanding and high-value components across industries. The key lies in respecting its abrasive nature and countering it with sharp, appropriate tooling, aggressive and correct machining parameters, and ample coolant. By adopting the strategies outlined—embracing high speeds and feeds, prioritizing tool geometry and rigidity, and implementing effective chip and heat management—machinists can transform 7075 from a challenging material into a predictable and highly productive one. The result is not just successful parts, but strong, lightweight, and reliable components that live up to the legendary status of the alloy itself.
